Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Chevy 400
- Competition Rotation Assembly
Chevy 400
Stroke: 3.800
Disp. @ 4.155: 412
Rod Length: 6.000
Pistons: +3cc Dome
Rings: File Fit
Comp Ratio 58cc/64cc/76cc: 13.2/12.2/10.7
Designed for Internal Balance - Flexplate/Flywheel and Balancer Not Included, Professional Machine Shop Balancing Required.

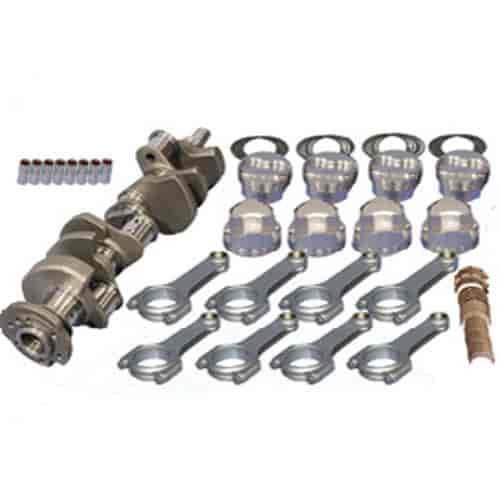

High Compression Chevy Competition Rotating Assemblies from Eagle offer the ultimate reliability and strength at an affordable price for the most demanding applications. These kits include an Eagle Forged 4340 Steel Crankshaft, Eagle H-Beam Rods, Mahle or JE Forged Pistons, Hastings Rings and high performance Clevite or King Bearings.
Notes:
- Assembly part numbers that begin with “B” are balanced by Eagle and require no additional balancing. Part numbers that do not begin with “B” are unbalanced assemblies and must be balanced by a qualified machine shop before use.
- All kits are designed for internal balance.
- Chevy Big Block 502 engines have a standard bore size of 4.470". Kits are available in .030", .060", .090", .130", and .155" oversize.
Show More
- Chevy Big Block 454 engines have a standard bore size of 4.250". Kits are available in .030", .060", .070", and .100" oversize.
- Chevy Small Block 400 engines have a standard bore size of 4.125". Kits are available in Standard, .020", .030", .040", and .060" oversize.
- Eagle Specialty Products reserves the right to substitute pistons due to availability.
Part TypeEngine Rotating Assembly Kit
Product LineEagle Chevy High Compression Rotating Assemblies
BrandEAGLE
Part CategoryPerformance Parts
Crankshaft MaterialForged 4340 steel
Piston And Ring Oversize0.03 in (0.8 mm)
Main Bearing Undersize (Mm)Stock
Wrist Pin StyleFloating
Connecting Rod Beam StyleH-beam
Rod Bearing Undersize (Mm)Stock
Piston Ring Facing MaterialPlasmamoly
Piston StyleDome, with two valve reliefs
Assembly Lubricant IncludedNo
Piston Head Volume (Cc)-3
Gaskets IncludedNo
Rear Main Seal Style2-piece
Main Bearing Undersize (In.)Stock
Crankshaft IncludedYes
Piston Rings IncludedYes
Bore (Mm)105.537
Actual Engine Cid412
Engine Stroke3.8 in (96.52 mm)
Connecting Rod MaterialForged 4340 steel
Pistons IncludedYes
Rod Bearing Undersize (In.)Stock
QuantitySold as a kit
Main Bearings IncludedYes
Engine BalanceInternal
Rod Bearings IncludedYes
Connecting Rods IncludedYes
Oil Pump IncludedNo
Camshaft IncludedNo
Timing Chain And Gears IncludedNo
BalancedNo
Piston MaterialForged aluminum
Cam Bearings IncludedNo
Part FitmentSemi Universal
Plastigage IncludedNo
Lifters IncludedNo
Bore4.155 in (105.537 mm)
Vendor Part Number35620030
Package Qty1
Package TypeEA
