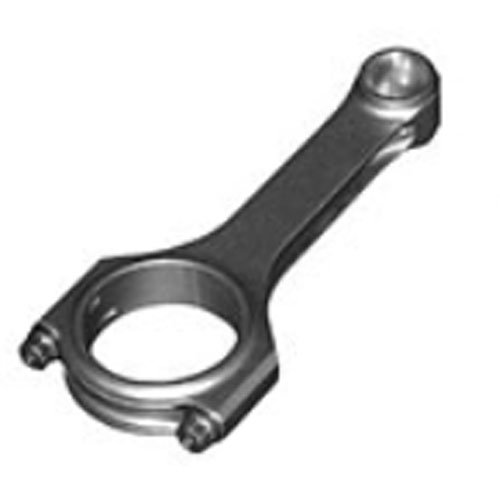

3TC, 2TG Length: 4.850"
Product Discontinued
EAGLEPART NUMBER: 356-4850TA3D-1

3TC, 2TG Length: 4.850"

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Toyota
    3TC, 2TG
  • Length: 4.850"
  • Weight: 545gr
  • Pin: 22mm

  • 3/8" ARP 2000 rod bolts.
  • Forged SAE 4340 steel from 2 piece forging.
  • Alignment sleeves for precise cap location. Weight-matched to +/- 1g.
  • Sizing performed with Sunnen Krossgrinding system.
  • Recommended for competition use up to 900 hp (4 cyl), 1500hp (6 cyl).

    Durable Forged Rods Suitable for Racing Performance

    Eagle ESP Import H-beam connecting rods are a 2-piece, forged, vacuum-degassed, 4340-certified steel construction that provides outstanding strength while weighing much less than stock rods. Each rod features multi-stage heat-treatment, X-rayed, sonic-tested, magnafluxed, 100-percent completely machined, and then shot-peened to stress-relieve the metal. The rods have precision cap alignment sleeves to positively locate each rod cap, silicon bronze bushings for floating pin models, and come standard with ARP 2000 rod bolts.

Part TypeConnecting Rod
Product LineEagle ESP Import H-Beam Connecting Rods
BrandEAGLE
Package Height1.8
Package Width4.7
Package Length8.9
Weight1.27 PG
Part CategoryPerformance Parts
Connecting Rod Bolt BrandARP
Rod Journal Diameter1.889 in (48 mm)
Connecting Rod MaterialForged 4340 steel
Connecting Rod Bolt Head Style12-point
Connecting Rod Bolt MaterialARP2000 alloy
Wrist Pin StyleFloating
QuantitySold individually
Connecting Rod Beam StyleH-beam
RemanufacturedNo
Big End Width1.055 in (26.797 mm)
Connecting Rod Length Center To Center4.85 in (123.19 mm)
Connecting Rod FinishShot-peened
Approximate Connecting Rod Weight (G)500
MagnafluxedYes
Weight Matched SetYes
Fastener Yield Strength (Psi)200,000
Cap Retention StyleCap screw
Pin End Bore Diameter0.865 in (22 mm)
Part FitmentSemi Universal
Clearanced For StrokerNo
Vendor Part Number4850TA3D-1
Package Qty1
Package TypeEA
