Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

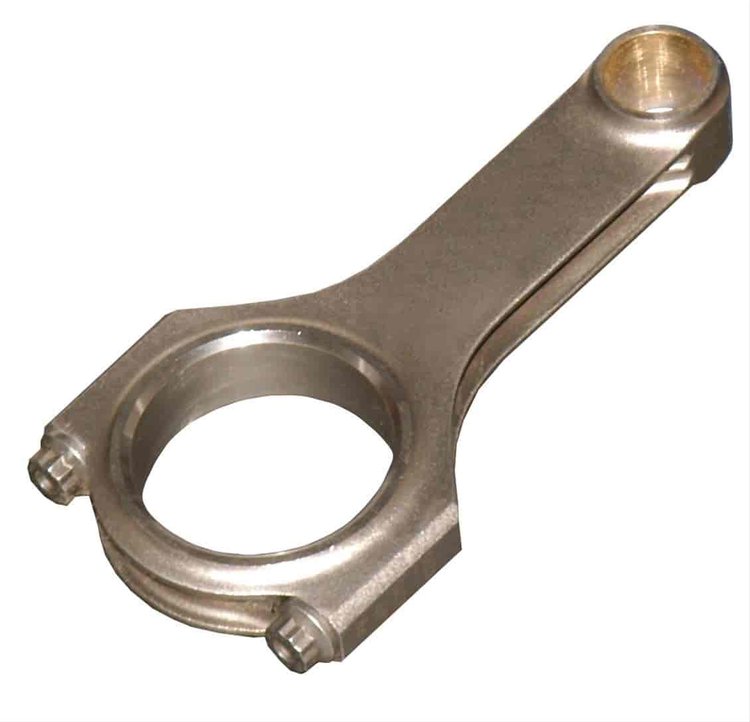

- CONNECTING ROD H-BEAM
Part TypeConnecting Rod
BrandEAGLE
Part CategoryPerformance Parts
Connecting Rod Bolt BrandARP
Rod Journal Diameter1.771 in (45 mm)
Advertised Horsepower Rating (Hp)900 hp
Connecting Rod Bolt Head Style12-point
Connecting Rod Bolt MaterialARP2000 alloy
Wrist Pin StyleFloating
Connecting Rod Beam StyleH-beam
RemanufacturedNo
Big End Width0.892 in (22.657 mm)
Approximate Connecting Rod Weight (G)535
Weight Matched SetNo
Fastener Yield Strength (Psi)200,000
Clearanced For StrokerNo
Connecting Rod MaterialForged 4340 steel
Advertised Rpm Rating7,500 rpm
Big End Bore Diameter1.89 in (48.006 mm)
QuantitySold individually
Pin End Width0.716 in (18.2 mm)
Connecting Rod Length Center To Center5.394 in (137.008 mm)
Connecting Rod FinishShot-peened
MagnafluxedYes
Cap Retention StyleCap screw
Pin End Bore Diameter0.748 in (19 mm)
Part FitmentSemi Universal
Vendor Part Number5394H3D-1
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
