Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

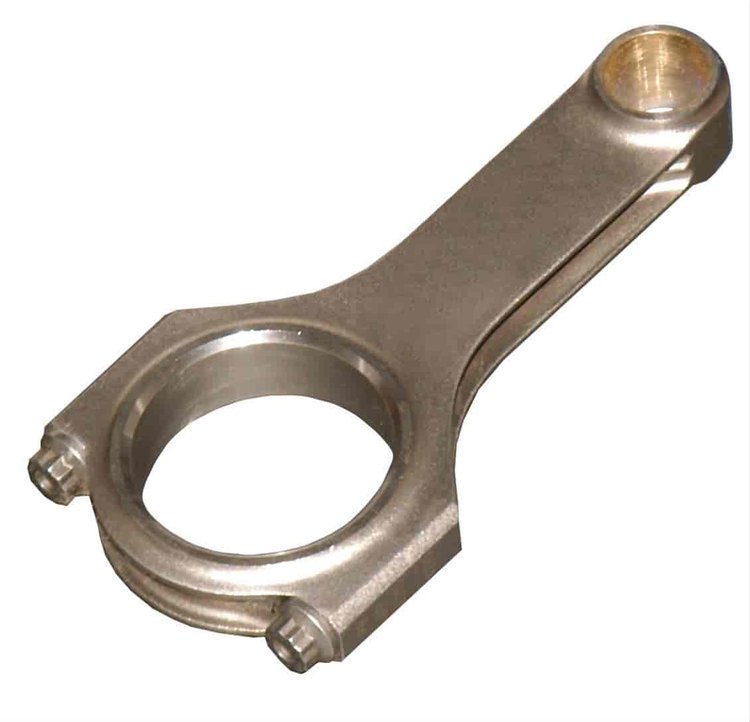

- CONNECTING ROD H-BEAM
Part TypeConnecting Rod
BrandEAGLE
Part CategoryPerformance Parts
Connecting Rod Bolt BrandARP
Connecting Rod MaterialForged 4340 steel
Advertised Horsepower Rating (Hp)1,500 hp
Connecting Rod Bolt Head Style12-point
Connecting Rod Bolt MaterialARP2000 alloy
Wrist Pin StyleFloating
Big End Bore Diameter2.167 in (55.042 mm)
QuantitySold as a set of 6
Connecting Rod Beam StyleH-beam
RemanufacturedNo
Pin End Width0.82 in (20.8 mm)
Big End Width0.815 in (20.701 mm)
Connecting Rod Length Center To Center5.68 in (144.272 mm)
Connecting Rod FinishShot-peened
Approximate Connecting Rod Weight (G)555
MagnafluxedYes
Weight Matched SetYes
Fastener Yield Strength (Psi)200,000
Cap Retention StyleCap screw
Pin End Bore Diameter0.866 in (22 mm)
Part FitmentSemi Universal
Clearanced For StrokerNo
Vendor Part Number5680N3D
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
