Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

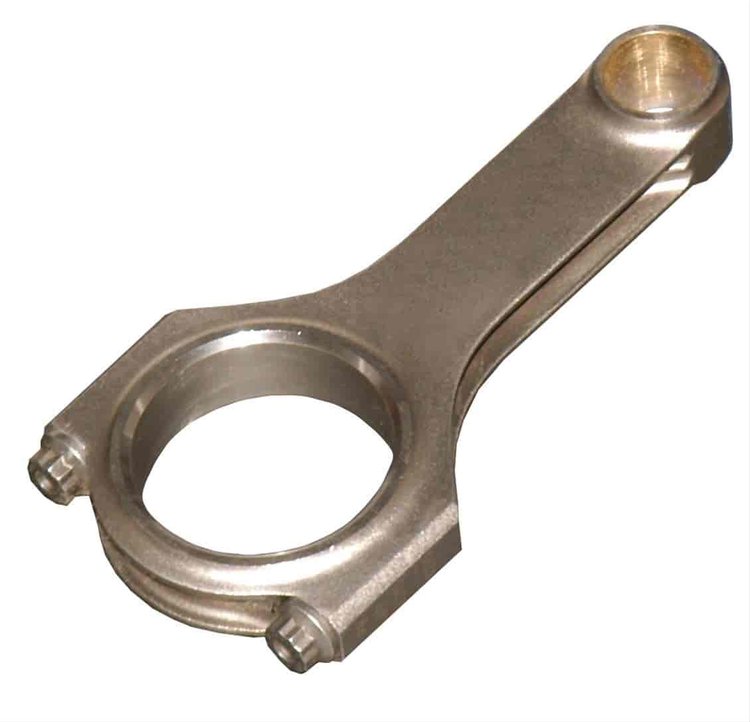

- CONNECTING ROD H-BEAM
Part TypeConnecting Rod
BrandEAGLE
Package Height4.1
Package Width9.7
Package Length10.8
Weight11.61 PG
Part CategoryPerformance Parts
Connecting Rod Bolt BrandARP
Rod Journal Diameter1.89 in (48 mm)
Advertised Horsepower Rating (Hp)700 hp
Connecting Rod Bolt Head Style12-point
Connecting Rod Bolt Material8740 chromoly steel
Wrist Pin StyleFloating
Connecting Rod Beam StyleH-beam
RemanufacturedNo
Big End Width0.94 in (23.876 mm)
Approximate Connecting Rod Weight (G)615
Weight Matched SetYes
Fastener Yield Strength (Psi)160,000
Clearanced For StrokerNo
Connecting Rod MaterialForged 4340 steel
Advertised Rpm Rating7,500 rpm
Big End Bore Diameter2.008 in (51.003 mm)
QuantitySold as a set of 8
Pin End Width0.94 in (23.9 mm)
Connecting Rod Length Center To Center5.7 in (144.78 mm)
Connecting Rod FinishShot-peened
MagnafluxedYes
Cap Retention StyleCap screw
Pin End Bore Diameter0.927 in (23.5 mm)
Part FitmentSemi Universal
Vendor Part Number5700H3D
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
