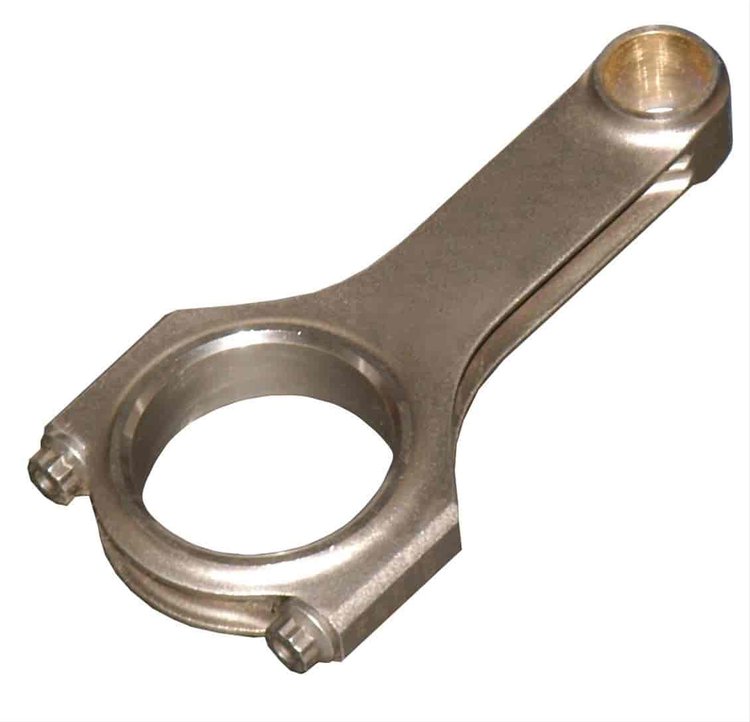

- CONNECTING ROD H-BEAM
Part TypeConnecting Rod
BrandEAGLE
Package Height7.0
Package Width7.0
Package Length48.0
Weight16.5 PG
Part CategoryPerformance Parts
Connecting Rod Bolt BrandARP
Rod Journal Diameter2.086 in (53 mm)
Connecting Rod MaterialForged 4340 steel
Advertised Horsepower Rating (Hp)600 hp
Connecting Rod Bolt Head Style12-point
Connecting Rod Bolt Material8740 chromoly steel
Wrist Pin StyleFloating
Big End Bore Diameter2.205 in (56.007 mm)
QuantitySold individually
Connecting Rod Beam StyleH-beam
RemanufacturedNo
Pin End Width1.092 in (27.7 mm)
Big End Width1.091 in (27.711 mm)
Connecting Rod Length Center To Center5.819 in (147.803 mm)
Connecting Rod FinishShot-peened
Approximate Connecting Rod Weight (G)530
MagnafluxedYes
Weight Matched SetNo
Fastener Yield Strength (Psi)160,000
Cap Retention StyleCap screw
Pin End Bore Diameter0.866 in (22 mm)
Part FitmentSemi Universal
Clearanced For StrokerNo
Vendor Part Number5819T3D-1
Package Qty1
Package TypeEA
