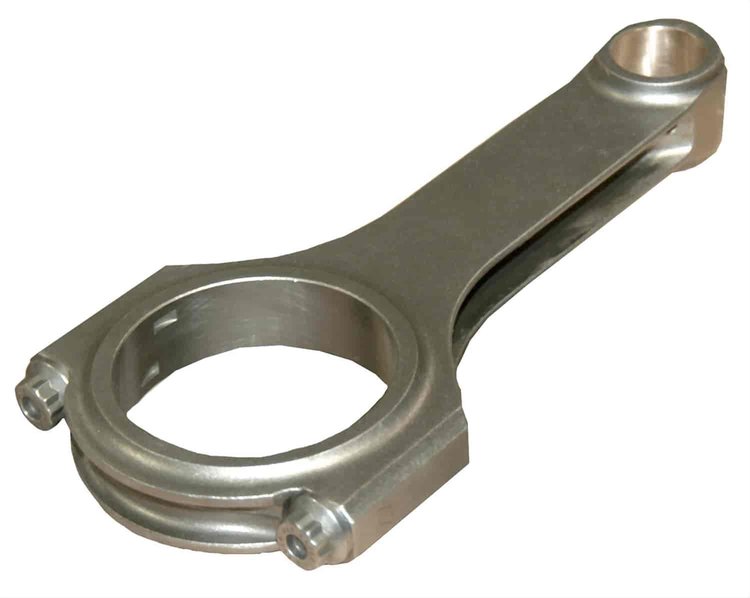

CONNECTING ROD H-BEAM

Name: CONNECTING ROD H-BEAM
Brand: EAGLE
SKU: 356-5850B3D
Price: 588.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Part TypeConnecting Rod

BrandEAGLE

Part CategoryPerformance Parts

Connecting Rod Bolt BrandARP

Rod Journal Diameter2.1 in (53.3 mm)

Connecting Rod MaterialForged 4340 steel

Advertised Horsepower Rating (Hp)700 hp

Advertised Rpm Rating7,500 rpm

Connecting Rod Bolt Head Style12-point

Connecting Rod Bolt Material8740 chromoly steel

Wrist Pin StyleFloating

Big End Bore Diameter2.225 in (56.515 mm)

QuantitySold as a set of 8

Connecting Rod Beam StyleH-beam

RemanufacturedNo

Connecting Rod Length Center To Center5.85 in (148.59 mm)

Connecting Rod FinishShot-peened

Approximate Connecting Rod Weight (G)650

MagnafluxedYes

Weight Matched SetYes

Fastener Yield Strength (Psi)160,000

Cap Retention StyleCap screw

Pin End Bore Diameter0.927 in (23.5 mm)

Part FitmentSemi Universal

Clearanced For StrokerYes

Vendor Part Number5850B3D

Package Qty1

Package TypeEA
