Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

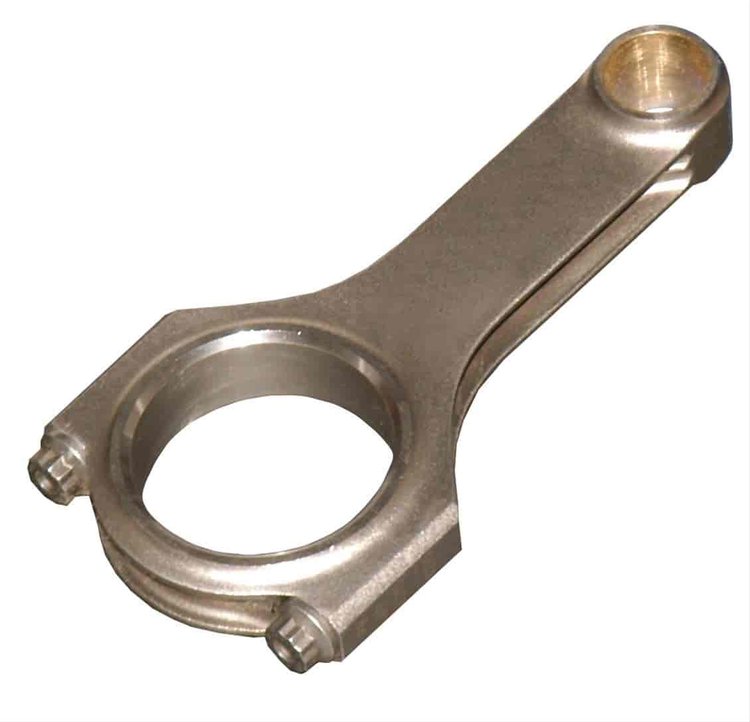

- CONNECTING ROD H-BEAM
Part TypeConnecting Rod
BrandEAGLE
Part CategoryPerformance Parts
Connecting Rod Bolt BrandARP
Connecting Rod MaterialForged 4340 steel
Advertised Horsepower Rating (Hp)700 hp
Advertised Rpm Rating7,500 rpm
Connecting Rod Bolt Head Style12-point
Connecting Rod Bolt Material8740 chromoly steel
Wrist Pin StyleFloating
Big End Bore Diameter2.125 in (53.975 mm)
QuantitySold as a set of 8
Connecting Rod Beam StyleH-beam
RemanufacturedNo
Pin End Width1.06 in (26.9 mm)
Big End Width0.94 in (23.876 mm)
Connecting Rod Length Center To Center5.85 in (148.59 mm)
Connecting Rod FinishShot-peened
Approximate Connecting Rod Weight (G)675
MagnafluxedYes
Weight Matched SetYes
Fastener Yield Strength (Psi)160,000
Cap Retention StyleCap screw
Pin End Bore Diameter0.928 in (23.6 mm)
Part FitmentSemi Universal
Clearanced For StrokerYes
Vendor Part Number5850S3D
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
