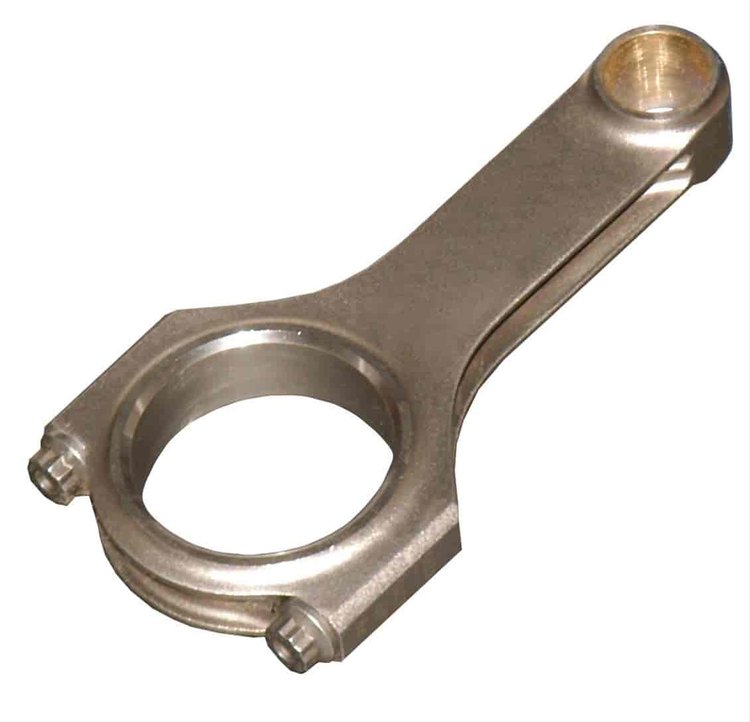

- CONNECTING ROD H-BEAM
Part TypeConnecting Rod
BrandEAGLE
Part CategoryPerformance Parts
Connecting Rod Bolt BrandARP
Rod Journal Diameter2.086 in (53 mm)
Connecting Rod MaterialForged 4340 steel
Advertised Horsepower Rating (Hp)600 hp
Connecting Rod Bolt Head Style12-point
Connecting Rod Bolt Material8740 chromoly steel
Wrist Pin StyleFloating
Big End Bore Diameter2.239 in (56.871 mm)
QuantitySold as a set of 8
Connecting Rod Beam StyleH-beam
RemanufacturedNo
Pin End Width0.939 in (23.9 mm)
Big End Width0.94 in (23.876 mm)
Connecting Rod Length Center To Center5.933 in (150.698 mm)
Connecting Rod FinishShot-peened
Approximate Connecting Rod Weight (G)605
MagnafluxedYes
Weight Matched SetYes
Fastener Yield Strength (Psi)180,000
Cap Retention StyleCap screw
Pin End Bore Diameter0.866 in (22 mm)
Part FitmentSemi Universal
Clearanced For StrokerNo
Vendor Part Number5933F8740
Package Qty1
Package TypeEA
