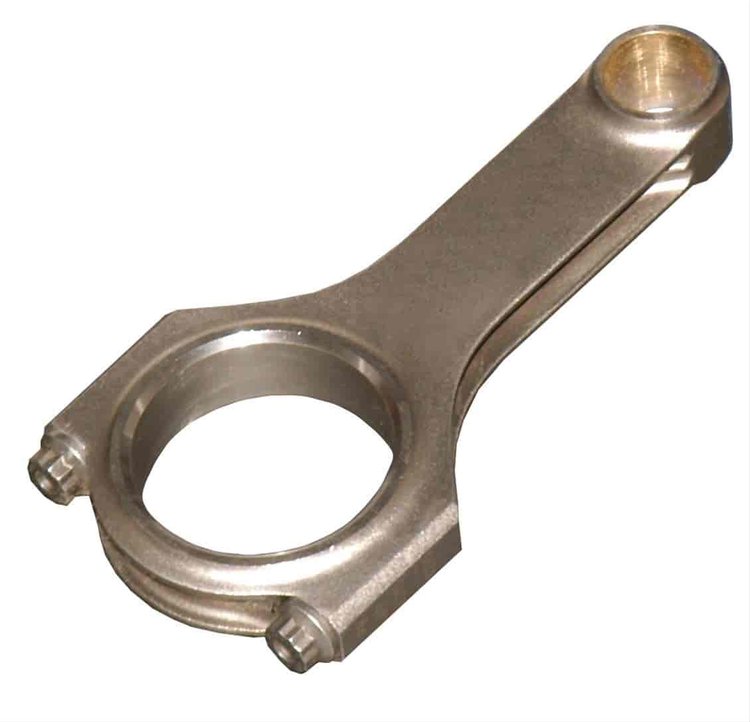

- CONNECTING ROD H-BEAM
Part TypeConnecting Rod
BrandEAGLE
Part CategoryPerformance Parts
Connecting Rod Bolt BrandARP
Rod Journal Diameter1.968 in (50 mm)
Connecting Rod MaterialForged 4340 steel
Advertised Horsepower Rating (Hp)900 hp
Connecting Rod Bolt Head Style12-point
Connecting Rod Bolt MaterialARP2000 alloy
Wrist Pin StyleFloating
Big End Bore Diameter2.088 in (53.035 mm)
QuantitySold as a set of 4
Connecting Rod Beam StyleH-beam
RemanufacturedNo
Pin End Width0.71 in (18 mm)
Big End Width0.91 in (23.114 mm)
Connecting Rod Length Center To Center6.094 in (154.788 mm)
Connecting Rod FinishShot-peened
Approximate Connecting Rod Weight (G)565
MagnafluxedYes
Weight Matched SetYes
Fastener Yield Strength (Psi)200,000
Cap Retention StyleCap screw
Pin End Bore Diameter0.827 in (21 mm)
Part FitmentSemi Universal
Clearanced For StrokerNo
Vendor Part Number6094F3D
Package Qty1
Package TypeEA
