Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

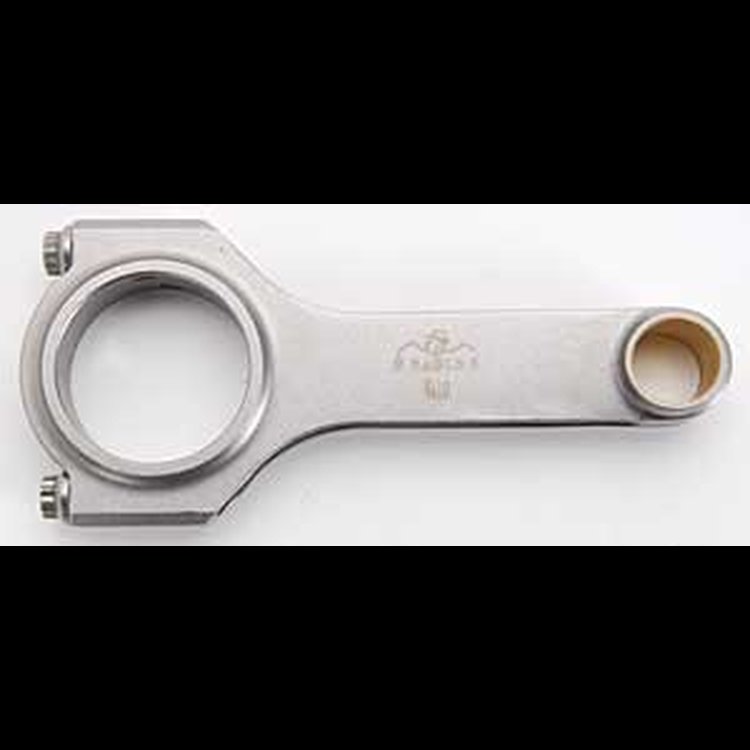

Chevrolet/Pontiac LS-series
- 6.125'' ESP Connecting Rods
- Large 2.100'' Crank Journal
- 620 grams
- 1/pkg
Part TypeConnecting Rod
BrandEAGLE
Package Height1.0
Package Width3.5
Package Length8.5
Weight1.42 PG
Part CategoryPerformance Parts
Connecting Rod Bolt BrandARP
Rod Journal Diameter2.1 in (53.3 mm)
Connecting Rod MaterialForged 4340 steel
Advertised Horsepower Rating (Hp)700 hp
Connecting Rod Bolt Head Style12-point
Connecting Rod Bolt Material8740 chromoly steel
Wrist Pin StyleFloating
Big End Bore Diameter2.225 in (56.515 mm)
QuantitySold individually
Connecting Rod Beam StyleH-beam
RemanufacturedNo
Pin End Width1.06 in (26.9 mm)
Big End Width0.94 in (23.876 mm)
Connecting Rod Length Center To Center6.125 in (155.575 mm)
Connecting Rod FinishShot-peened
Approximate Connecting Rod Weight (G)620
MagnafluxedYes
Weight Matched SetNo
Fastener Yield Strength (Psi)180,000
Cap Retention StyleCap screw
Pin End Bore Diameter0.927 in (23.5 mm)
Part FitmentSemi Universal
Clearanced For StrokerNo
Vendor Part Number6125O3D-1
Package Qty1
Package TypeEA
