![6125O3D2000 Forged 4340 Steel H-Beam Connecting Rods for GM Gen III/IV LS [6.125 in. Length]](https://www.jegs.com/images/mini_750/300/356/356-6125o3d2000.jpg)
Vehicle Info NeededEAGLEPART NUMBER: 356-6125O3D2000

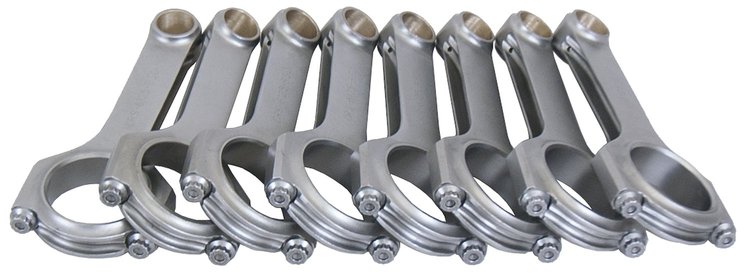

6125O3D2000 Forged 4340 Steel H-Beam Connecting Rods for GM Gen III/IV LS [6.125 in. Length]
$74199
2 left in stock
Ships Tomorrow
Lowest Price GuaranteeChevrolet/Pontiac LS-series
Forged 4340 Steel H-Beam Connecting RodsGM Gen III/IV LS Engines Length: 6.125 in. Pin Size: 0.927 in.. Pin End Width: 1.06 in. Rod Journal: 2.100 in. Housing Bore: 2.225 in. Big End Width: 0.94 in. Weight: 620g Set of 8
Eagle 6125O3D2000 Forged 4340 Steel H‑Beam Connecting Rods:
- Fits GM Gen III/IV LS engines
- Material: Forged 4340 steel
- Center‑to‑center length: 6.125 in.
- Wrist pin style: Bushed for full‑floating piston pin
- Pin size: 0.927 in.
- Pin end width: 1.06 in.
- Rod journal: 2.100 in.
- Housing bore: 2.225 in.
- Big end width: 0.94 in.
- Typical weight: 620 g per rod
- Includes 7/16 in. ARP-2000 alloy 12‑point rod bolts
- Sold as a precision weight‑matched set of 8 rods
Part TypeConnecting Rod
BrandEAGLE
Package Height5.5
Package Width10.1
Package Length10.4
Weight11.66 PG
Part CategoryPerformance Parts
Connecting Rod Bolt BrandARP
Rod Journal Diameter2.1 in (53.3 mm)
Connecting Rod MaterialForged 4340 steel
Advertised Horsepower Rating (Hp)700 hp
Advertised Rpm Rating7,500 rpm
Connecting Rod Bolt Head Style12-point
Connecting Rod Bolt MaterialARP2000 alloy
Wrist Pin StyleFloating
Big End Bore Diameter2.225 in (56.515 mm)
QuantitySold as a set of 8
Connecting Rod Beam StyleH-beam
RemanufacturedNo
Connecting Rod Length Center To Center6.125 in (155.575 mm)
Connecting Rod FinishShot-peened
Approximate Connecting Rod Weight (G)620
MagnafluxedYes
Weight Matched SetYes
Fastener Yield Strength (Psi)200,000
Cap Retention StyleCap screw
Pin End Bore Diameter0.927 in (23.5 mm)
Part FitmentSemi Universal
Clearanced For StrokerNo
Vendor Part Number6125O3D2000
Package Qty1
Package TypeEA
