Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

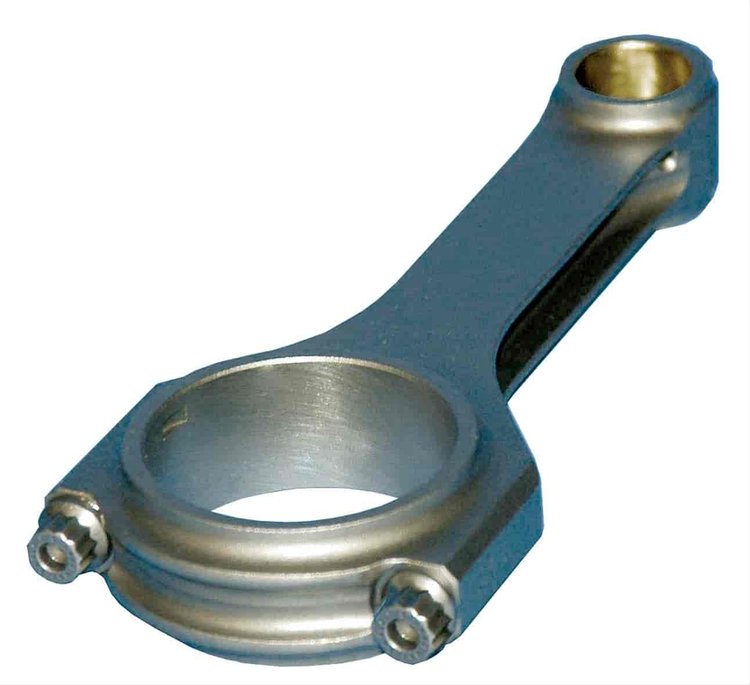

- CONNECTING ROD H-BEAM
Part TypeConnecting Rod
BrandEAGLE
Part CategoryPerformance Parts
Connecting Rod Bolt BrandARP
Rod Journal Diameter2.2 in (55.9 mm)
Advertised Horsepower Rating (Hp)850 hp
Connecting Rod Bolt Head Style12-point
Connecting Rod Bolt Material8740 chromoly steel
Wrist Pin StyleFloating
Connecting Rod Beam StyleH-beam
RemanufacturedNo
Big End Width0.99 in (25.146 mm)
Approximate Connecting Rod Weight (G)785
Weight Matched SetYes
Fastener Yield Strength (Psi)160,000
Clearanced For StrokerNo
Connecting Rod MaterialForged 4340 steel
Advertised Rpm Rating7,500 rpm
Big End Bore Diameter2.325 in (59.055 mm)
QuantitySold as a set of 8
Pin End Width1.125 in (28.6 mm)
Connecting Rod Length Center To Center6.385 in (162.179 mm)
Connecting Rod FinishShot-peened
MagnafluxedYes
Cap Retention StyleCap screw
Pin End Bore Diameter0.99 in (25.1 mm)
Part FitmentSemi Universal
Vendor Part Number6385B3D
Package Qty1
Package TypeEA
