Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Chevy 396-502

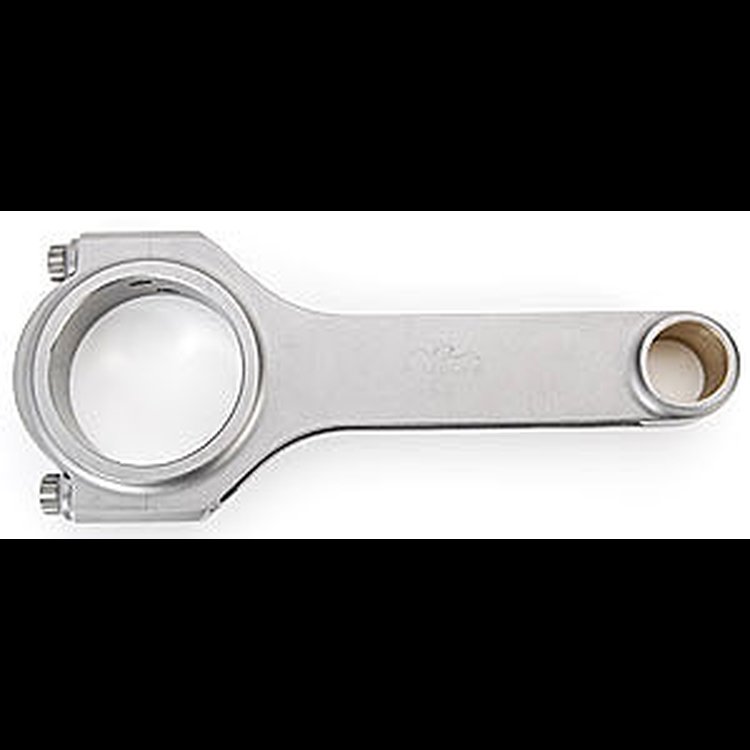

- ESP 4340 Steel H-Beam Connecting Rod
- Big Block Chevy
- 6.535 in. Length
- ARP L19 7/16 in. Rod Bolts
- 805 grams
- Sold Individually
- With L19 Bolts
Part TypeConnecting Rod
BrandEAGLE
Package Height5.2
Package Width6.0
Package Length11.6
Weight2.35 PG
Part CategoryPerformance Parts
Connecting Rod Bolt BrandARP
Rod Journal Diameter2.2 in (55.9 mm)
Connecting Rod MaterialForged 4340 steel
Advertised Horsepower Rating (Hp)1,500 hp
Connecting Rod Bolt Head Style12-point
Connecting Rod Bolt MaterialL19 alloy
Wrist Pin StyleFloating
Big End Bore Diameter2.325 in (59.055 mm)
QuantitySold individually
Connecting Rod Beam StyleH-beam
RemanufacturedNo
Pin End Width1.125 in (28.6 mm)
Big End Width0.99 in (25.146 mm)
Connecting Rod Length Center To Center6.535 in (165.989 mm)
Connecting Rod FinishShot-peened
Approximate Connecting Rod Weight (G)805
MagnafluxedYes
Weight Matched SetNo
Fastener Yield Strength (Psi)260,000
Cap Retention StyleCap screw
Pin End Bore Diameter0.99 in (25.1 mm)
Part FitmentSemi Universal
Clearanced For StrokerNo
Vendor Part Number65353DL19-1
Package Qty1
Package TypeEA
