Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

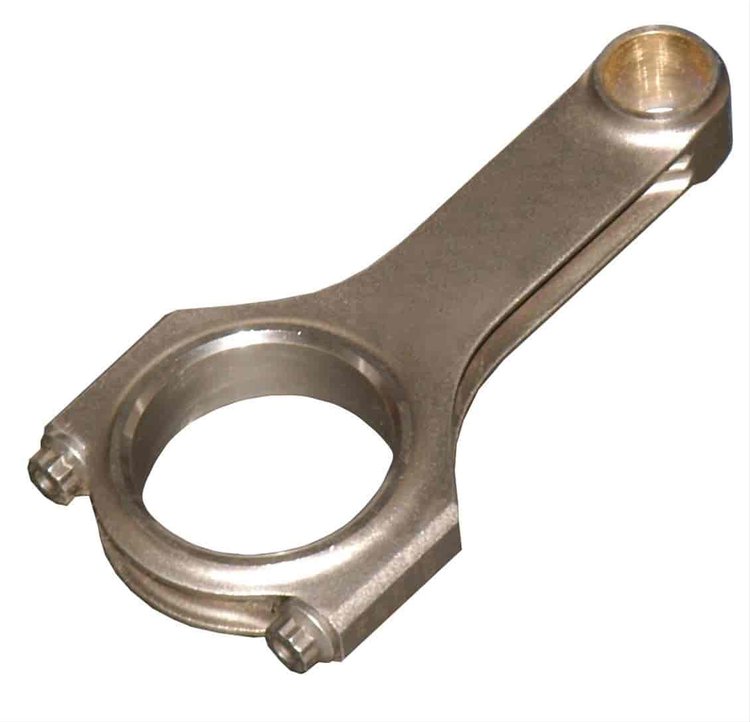

- CONNECTING ROD H-BEAM
Part TypeConnecting Rod
BrandEAGLE
Part CategoryPerformance Parts
Connecting Rod Bolt BrandARP
Rod Journal Diameter2.499 in (63.5 mm)
Connecting Rod MaterialForged 4340 steel
Advertised Horsepower Rating (Hp)900 hp
Connecting Rod Bolt Head Style12-point
Connecting Rod Bolt Material8740 chromoly steel
Wrist Pin StyleFloating
Big End Bore Diameter2.625 in (66.675 mm)
QuantitySold individually
Connecting Rod Beam StyleH-beam
RemanufacturedNo
Pin End Width1.125 in (28.6 mm)
Big End Width0.932 in (23.673 mm)
Connecting Rod Length Center To Center6.735 in (171.069 mm)
Connecting Rod FinishShot-peened
Approximate Connecting Rod Weight (G)820
MagnafluxedYes
Weight Matched SetNo
Fastener Yield Strength (Psi)180,000
Cap Retention StyleCap screw
Pin End Bore Diameter0.98 in (24.9 mm)
Part FitmentSemi Universal
Clearanced For StrokerNo
Vendor Part Number6735O3D-1
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
