Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Chevy 396-502

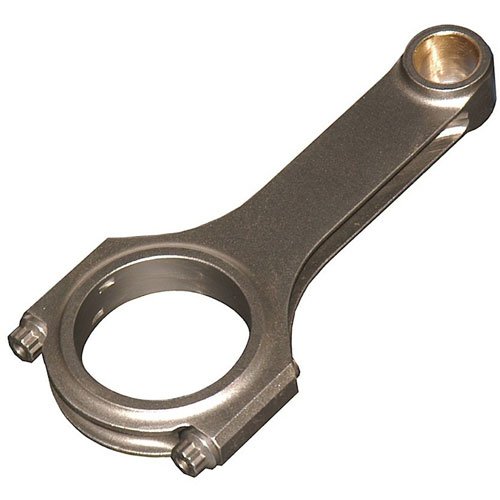

- 6.800" ESP Connecting Rods
- Features ARP L19 Rod Bolts
- 815 grams
Part TypeConnecting Rod
BrandEAGLE
Package Height4.0
Package Width12.0
Package Length12.0
Weight5.5 PG
Part CategoryPerformance Parts
Connecting Rod Bolt BrandARP
Rod Journal Diameter2.2 in (55.9 mm)
Advertised Horsepower Rating (Hp)1,500 hp
Connecting Rod Bolt Head Style12-point
Connecting Rod Bolt MaterialL19 alloy
Wrist Pin StyleFloating
Connecting Rod Beam StyleH-beam
RemanufacturedNo
Big End Width0.99 in (25.146 mm)
Approximate Connecting Rod Weight (G)805
Weight Matched SetYes
Fastener Yield Strength (Psi)260,000
Clearanced For StrokerNo
Connecting Rod MaterialForged 4340 steel
Advertised Rpm Rating7,500 rpm
Big End Bore Diameter2.325 in (59.055 mm)
QuantitySold as a set of 8
Pin End Width1.125 in (28.6 mm)
Connecting Rod Length Center To Center6.8 in (172.72 mm)
Connecting Rod FinishShot-peened
MagnafluxedYes
Cap Retention StyleCap screw
Pin End Bore Diameter0.99 in (25.1 mm)
Part FitmentSemi Universal
Vendor Part Number68003DL19
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
