Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Chrysler 413/426W/440 RB

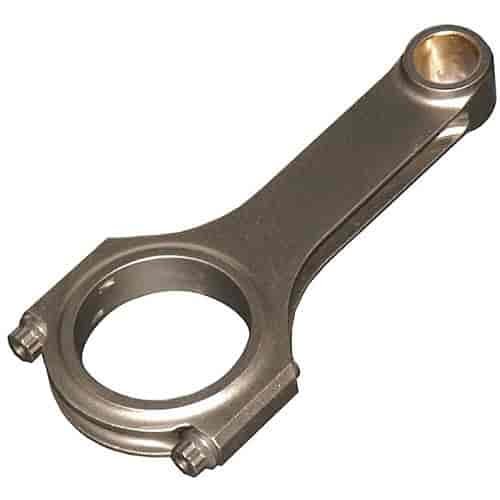

- ESP 4340 Steel H-Beam Connecting Rod Set
- Big Block Chrysler RB, 426 Hemi
- 6.860 in. Length
- 890 grams
- 1.030 in. Pin Size
- Set of 8
Part TypeConnecting Rod
BrandEAGLE
Package Height0.7
Package Width5.7
Package Length9.7
Weight1.07 PG
Part CategoryPerformance Parts
Connecting Rod Bolt BrandARP
Rod Journal Diameter2.375 in (60.3 mm)
Connecting Rod MaterialForged 4340 steel
Advertised Horsepower Rating (Hp)1,200 hp
Connecting Rod Bolt Head Style12-point
Connecting Rod Bolt MaterialARP2000 alloy
Wrist Pin StyleFloating
Big End Bore Diameter2.501 in (63.525 mm)
QuantitySold as a set of 8
Connecting Rod Beam StyleH-beam
RemanufacturedNo
Pin End Width1.25 in (31.8 mm)
Big End Width1.007 in (25.578 mm)
Connecting Rod Length Center To Center6.86 in (174.244 mm)
Connecting Rod FinishShot-peened
Approximate Connecting Rod Weight (G)890
MagnafluxedYes
Weight Matched SetYes
Fastener Yield Strength (Psi)200,000
Cap Retention StyleCap screw
Pin End Bore Diameter1.03 in (26.2 mm)
Clearanced For StrokerNo
Vendor Part Number6860C3D2000
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
