Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

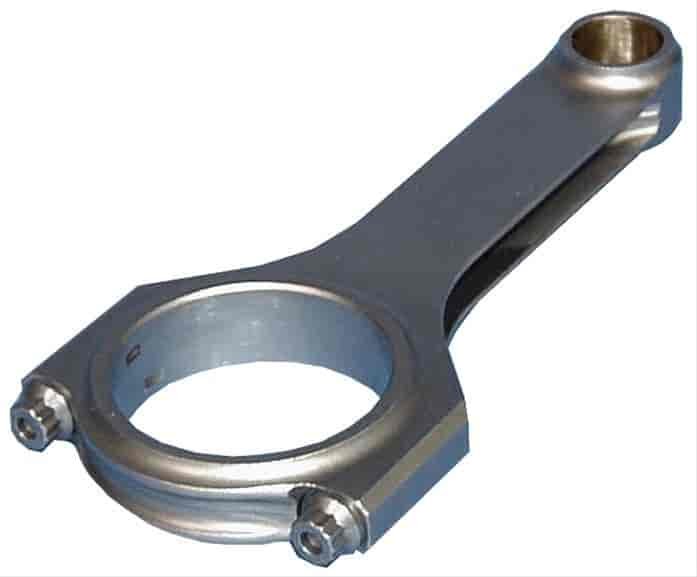

- CONNECTING ROD H-BEAM
Part TypeConnecting Rod
BrandEAGLE
Part CategoryPerformance Parts
Connecting Rod Bolt BrandARP
Connecting Rod MaterialForged 4340 steel
Advertised Horsepower Rating (Hp)750 hp
Advertised Rpm Rating7,500 rpm
Connecting Rod Bolt Head Style12-point
Connecting Rod Bolt Material8740 chromoly steel
Wrist Pin StyleFloating
Big End Bore Diameter2.22 in (56.388 mm)
QuantitySold as a set of 8
Connecting Rod Beam StyleH-beam
RemanufacturedNo
Connecting Rod Length Center To Center7.1 in (180.34 mm)
Connecting Rod FinishShot-peened
Approximate Connecting Rod Weight (G)840
MagnafluxedYes
Weight Matched SetYes
Fastener Yield Strength (Psi)160,000
Cap Retention StyleCap screw
Pin End Bore Diameter0.99 in (25.1 mm)
Part FitmentSemi Universal
Clearanced For StrokerNo
Vendor Part Number7100C3D
Package Qty1
Package TypeEA
