Product Discontinued
EAGLEPART NUMBER: 356-B13102E060

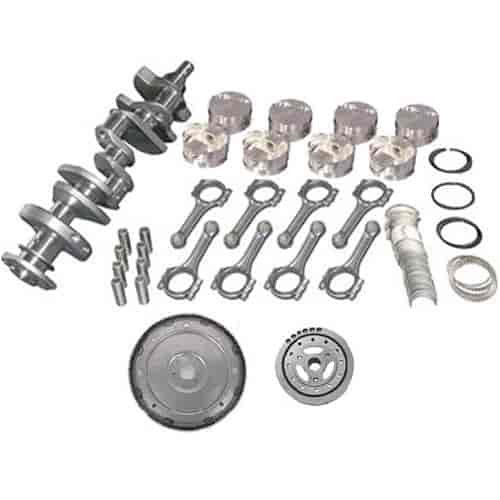

Eagle Chevy Small Block 2pc Seal Balanced Street and Strip Rotating Assemblies
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Chevy 305 Small Block 2pc Seal Balanced Rotating Assemblies3.750" Stroke 5.700" Rods Hypereutectic Pistons Externally Balanced
- Street and Strip Rotating Assembly -
305 2pc External
Stroke: 3.750
Disp. @ .030: 334
Rod Length: 5.700
Pistons: -10cc Dish
Rings: Standard
Comp. Ratio 58cc/64cc: 10.1/9.4
External balance - includes a street dampner and 168 tooth Automatic transmission flexplate. If you require a different flexplate, flywheel or dampner, the factory GM 400 small block external balanced items can be used or new components will need to be purchased separately.
Part TypeEngine Rotating Assembly Kit
BrandEAGLE
Part CategoryPerformance Parts
Crankshaft MaterialCast steel
Piston And Ring Oversize0.06 in (1.5 mm)
Main Bearing Undersize (Mm)Stock
Wrist Pin StyleFloating
Connecting Rod Beam StyleI-beam
Rod Bearing Undersize (Mm)Stock
Piston Ring Facing MaterialPlasmamoly
Piston StyleDish, with a D-shaped cup
Assembly Lubricant IncludedNo
Piston Head Volume (Cc)10
Gaskets IncludedNo
Rear Main Seal Style2-piece
Main Bearing Undersize (In.)Stock
Crankshaft IncludedYes
Piston Rings IncludedYes
Bore (Mm)96.418
Actual Engine Cid340
Engine Stroke3.75 in (95.25 mm)
Connecting Rod MaterialForged 5140 steel
Pistons IncludedYes
Rod Bearing Undersize (In.)Stock
QuantitySold as a kit
Main Bearings IncludedYes
Engine BalanceExternal
Rod Bearings IncludedYes
Connecting Rods IncludedYes
Oil Pump IncludedNo
Camshaft IncludedNo
Timing Chain And Gears IncludedNo
BalancedYes
Piston MaterialSilvolite Cast
Cam Bearings IncludedNo
Part FitmentSemi Universal
Plastigage IncludedNo
Lifters IncludedNo
Bore3.796 in (96.418 mm)
Vendor Part NumberB13102E060
Package Qty1
Package TypeEA
