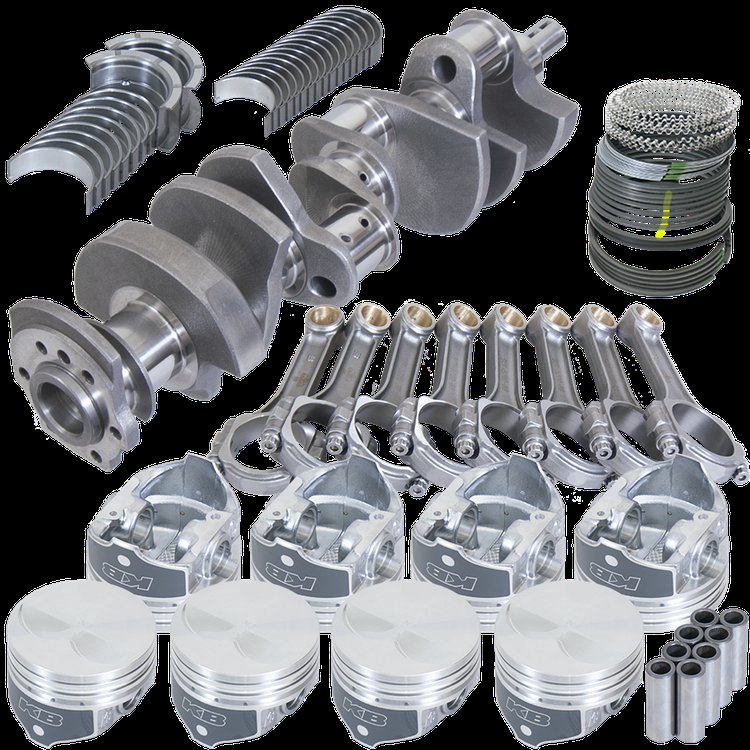

B13202E030 Chevy Small Block 2pc Seal Balanced Street and Strip Rotating Assembly
InfoVehicle Info Needed
EAGLEPART NUMBER: 356-B13202E030

B13202E030 Chevy Small Block 2pc Seal Balanced Street and Strip Rotating Assembly

$1,36899
4 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Items You Need

Engine Assembly Lube [4 oz. Bottle]

JEGS

Engine Assembly Lube [4 oz. Bottle]

Part Number : 555-28000
$599$6.99
You Save$1.00
Break-In/Engine Oil Supplement [12 oz. Bottle]

JEGS

Break-In/Engine Oil Supplement [12 oz. Bottle]

Part Number : 555-28060
$1009$11.99
You Save$1.90
Harmonic Balancer for Small Block Chevy [6 3/4 in. Diameter]

JEGS

Harmonic Balancer for Small Block Chevy [6 3/4 in. Diameter]

Part Number : 555-51652
$7199$79.99
You Save$8.00
Flywheel for 1955-1985 Small Block Chevy, 153-Tooth [Internally Balanced]

JEGS

Flywheel for 1955-1985 Small Block Chevy, 153-Tooth [Internally Balanced]

Part Number : 555-601200
$9699$104.69
You Save$7.70

Chevy 350 Small Block 2pc Seal Balanced Rotating Assemblies
  • 3.480" Stroke
  • 5.700" Rods
  • Hypereutectic Pistons
  • Internally Balanced
  • Street and Strip Rotating Assembly
    350 2pc Internal
    Stroke: 3.480
    Disp. @ .030: 355
    Rod Length: 5.700
    Pistons: -7cc Flat Top
    Rings: Standard
    Comp. Ratio 58cc/64cc: 10.9/10.2

    Eagle B13202E030 Street and Strip Rotating Assembly Features:

    • Displacement: 355
    • Pistons: KB
    • Dome volume: -7CC
    • Stroke: 3.480"
    • Rod length: 5.700"
    • Rod design: 5140 I-Beam
    • Rod bolts: 3/8" ARP 8740
    • Bearings: King SI

    Eagle B13202E030 Street and Strip Rotating Assembly Notes:

    Internal balance - does NOT include the Harmonic balancer/dampner and Automatic transmission flexplate or Manual transmission flywheel. The factory nuetral balanced items can be used or new components will need to be purchased separately.


      Performance Small Block Chevy Rotating Assemblies

      These rotating assemblies are designed for pre-1986 small block Chevy with 2-piece rear main seals. They offer affordable performance and reliability for engines making less than 500 horsepower. Kits include an Eagle Cast Steel Crankshaft; Eagle "SIR" I-Beam Rods; Silvolite Cast, SRP, or Mahle Forged Pistons; Hastings Rings; and Clevite or King Bearings. Kits are available with internal or external balance.

      Show MoreAssembly part numbers that begin with “B” are balanced by Eagle and require no additional balancing. Part numbers that do not begin with “B” are unbalanced assemblies and must be balanced by a qualified machine shop before use. Kits are available in a standard bore or .020 in., .030 in., .040 in., and .060 in. oversized. Eagle Specialty Products reserves the right to substitute pistons due to availability.
    Part TypeEngine Rotating Assembly Kit
    Product LineEagle SBC 2pc Seal Balanced Street and Strip Rotating Assemblies
    BrandEAGLE
    Package Height12.0
    Package Width21.0
    Package Length31.5
    Weight86.0 PG
    Part CategoryPerformance Parts
    Crankshaft MaterialCast steel
    Piston And Ring Oversize0.03 in (0.8 mm)
    Main Bearing Undersize (Mm)Stock
    Wrist Pin StyleFloating
    Connecting Rod Beam StyleI-beam
    Rod Bearing Undersize (Mm)Stock
    Piston Ring Facing MaterialPlasmamoly
    Piston StyleFlat top, with two valve reliefs
    Assembly Lubricant IncludedNo
    Piston Head Volume (Cc)7
    Gaskets IncludedNo
    Rear Main Seal Style2-piece
    Main Bearing Undersize (In.)Stock
    Crankshaft IncludedYes
    Piston Rings IncludedYes
    Bore (Mm)102.362
    Actual Engine Cid355
    Engine Stroke3.48 in (88.392 mm)
    Connecting Rod MaterialForged 5140 steel
    Pistons IncludedYes
    Rod Bearing Undersize (In.)Stock
    QuantitySold as a kit
    Main Bearings IncludedYes
    Engine BalanceInternal
    Rod Bearings IncludedYes
    Connecting Rods IncludedYes
    Oil Pump IncludedNo
    Camshaft IncludedNo
    Timing Chain And Gears IncludedNo
    BalancedYes
    Piston MaterialSilvolite Cast
    Cam Bearings IncludedNo
    Part FitmentSemi Universal
    Plastigage IncludedNo
    Lifters IncludedNo
    Bore4.03 in (102.362 mm)
    Vendor Part NumberB13202E030
    Package Qty1
    Package TypeEA
