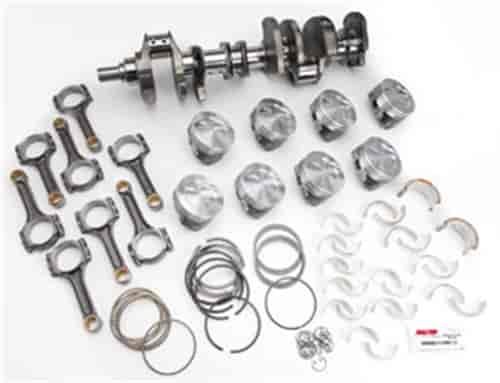

Eagle Chevy Street Performance Rotating Assemblies
InfoVehicle Info Needed
EAGLEPART NUMBER: 356-B13202L03068

Eagle Chevy Street Performance Rotating Assemblies

$1,58199
ShippingShips on 09/14/2026
Lowest PriceLowest Price Guarantee

Chevy 350 Internally Balanced, 1pc Rear Main Seal
    Street Performance Rotating Assembly
    Stroke:3.480
    Disp. @ .030: 355
    Rod Length:5.700
    Pistons:-7cc Flat Top
    Rings: Standard Gap
    Compression Ratio 58cc/64cc/76cc:10.3/9.6/8.55

    From the factory 1-piece rear main seal small block Chevy 350, LT1 and Vortec engines are balanced internally in the front and externally in the rear. When building these engines with an Eagle rotating assembly the balance is changed to internal front and internal rear. Automatic transmission applications use the included 153 tooth internal balance flexplate. Manual transmission applications will require an aftermarket internal/nuetral balance flywheel assembly (not included).

Part TypeEngine Rotating Assembly Kit
BrandEAGLE
Package Height20.5
Package Width21.5
Package Length30.5
Weight75.0 PG
Part CategoryPerformance Parts
Crankshaft MaterialCast steel
Piston And Ring Oversize0.03 in (0.8 mm)
Main Bearing Undersize (Mm)Stock
Wrist Pin StyleFloating
Connecting Rod Beam StyleI-beam
Rod Bearing Undersize (Mm)Stock
Piston Ring Facing MaterialPlasmamoly
Piston StyleFlat top, with two valve reliefs
Assembly Lubricant IncludedNo
Piston Head Volume (Cc)7
Gaskets IncludedNo
Rear Main Seal Style1-piece
Main Bearing Undersize (In.)Stock
Crankshaft IncludedYes
Piston Rings IncludedYes
Bore (Mm)102.362
Actual Engine Cid355
Engine Stroke3.48 in (88.392 mm)
Connecting Rod MaterialForged 5140 steel
Pistons IncludedYes
Rod Bearing Undersize (In.)Stock
QuantitySold as a kit
Main Bearings IncludedYes
Engine BalanceInternal
Rod Bearings IncludedYes
Connecting Rods IncludedYes
Oil Pump IncludedNo
Camshaft IncludedNo
Timing Chain And Gears IncludedNo
BalancedYes
Piston MaterialHypereutectic aluminum
Cam Bearings IncludedNo
Part FitmentSemi Universal
Plastigage IncludedNo
Lifters IncludedNo
Bore4.03 in (102.362 mm)
Vendor Part NumberB13202L03068
Package Qty1
Package TypeEA
