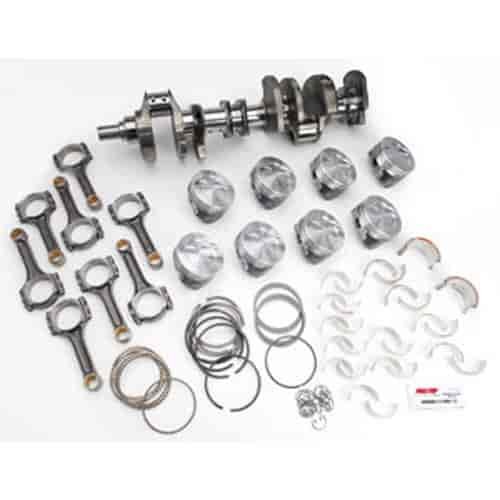

Chevy 350 Internal Front/External Rear Balanced, 1pc Rear Main Seal
- Street Performance Rotating Assembly
Stroke: 3.750
Disp. @ .040: 385
Rod Length: 5.700
Pistons: -5cc Flat Top
Rings: Standard Gap
Comp. Ratio 58cc/64cc/76cc: 11.4/10.7/9.4
O.E. balance - includes a 153 tooth Automatic transmission flexplate. The factory internal balance dampner and external balance flexplate or flywheel can be used or if you require a Manual transmission flywheel or different dampner, new components will need to be purchased separately.
Part TypeEngine Rotating Assembly Kit
BrandEAGLE
Part CategoryPerformance Parts
Crankshaft MaterialCast iron
Piston And Ring Oversize0.04 in (1 mm)
Main Bearing Undersize (Mm)Stock
Wrist Pin StylePress-fit or floating
Connecting Rod Beam StyleI-beam
Rod Bearing Undersize (Mm)Stock
Piston Ring Facing MaterialPlasmamoly
Piston StyleFlat top, with no valve reliefs
Assembly Lubricant IncludedNo
Piston Head Volume (Cc)-5
Gaskets IncludedNo
Rear Main Seal Style1-piece
Main Bearing Undersize (In.)Stock
Crankshaft IncludedYes
Piston Rings IncludedYes
Bore (Mm)102.616
Actual Engine Cid385
Engine Stroke3.75 in (95.25 mm)
Connecting Rod MaterialForged 5140 steel
Pistons IncludedYes
Rod Bearing Undersize (In.)Stock
QuantitySold as a kit
Main Bearings IncludedYes
Engine BalanceInternal
Rod Bearings IncludedYes
Connecting Rods IncludedYes
Oil Pump IncludedNo
Camshaft IncludedNo
Timing Chain And Gears IncludedNo
BalancedYes
Piston MaterialHypereutectic aluminum
Cam Bearings IncludedNo
Plastigage IncludedNo
Lifters IncludedNo
Bore4.04 in (102.616 mm)
Vendor Part NumberB13455L04053
Package Qty1
Package TypeEA
