Vehicle Info Needed

EAGLEPART NUMBER: 356-CRS4850TA3D

CRS4850TA3D 4340 Rod Toyota 3Tc 4

Name: CRS4850TA3D 4340 Rod Toyota 3Tc 4
Brand: EAGLE
SKU: 356-CRS4850TA3D
Price: 406.99 USD
Availability: InStock

^$406⁹⁹

Ships on 09/08/2026

Lowest Price Guarantee

Toyota

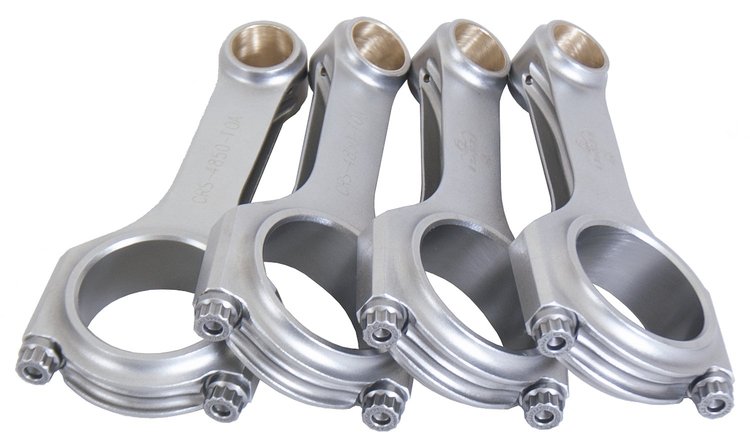

Forged 4340 Steel H-Beam Rods - Toyota 3Tc

Eagle CRS4850TA3D Features:

Bolts: 3/8 in. ARP 2000
Matieral: forged 4340 steel
Center to Center Length: 4.85 in.
Pin Size: 0.866 in.
Pin End Width: 1.055 in.
Rod Journal: 1.889 in.
Housing Bore: 2.008 in.
Big End Width: 1.055 in.
Typical Weight: 545g

Part TypeConnecting Rod

BrandEAGLE

Package Height4.3

Package Width9.7

Package Length10.9

Weight5.55 PG

Part CategoryPerformance Parts

Connecting Rod Bolt BrandARP

Rod Journal Diameter1.889 in (48 mm)

Connecting Rod MaterialForged 4340 steel

Connecting Rod Bolt Head Style12-point

Connecting Rod Bolt MaterialARP2000 alloy

Wrist Pin StyleFloating

QuantitySold as a set of 4

Connecting Rod Beam StyleH-beam

RemanufacturedNo

Big End Width1.055 in (26.797 mm)

Connecting Rod Length Center To Center4.85 in (123.19 mm)

Connecting Rod FinishShot-peened

Approximate Connecting Rod Weight (G)500

MagnafluxedYes

Weight Matched SetYes

Fastener Yield Strength (Psi)200,000

Cap Retention StyleCap screw

Pin End Bore Diameter0.865 in (22 mm)

Part FitmentSemi Universal

Clearanced For StrokerNo

Vendor Part NumberCRS4850TA3D

Package Qty1

Package TypeEA
