Vehicle Info NeededEAGLEPART NUMBER: 356-CRS5090F3D-1

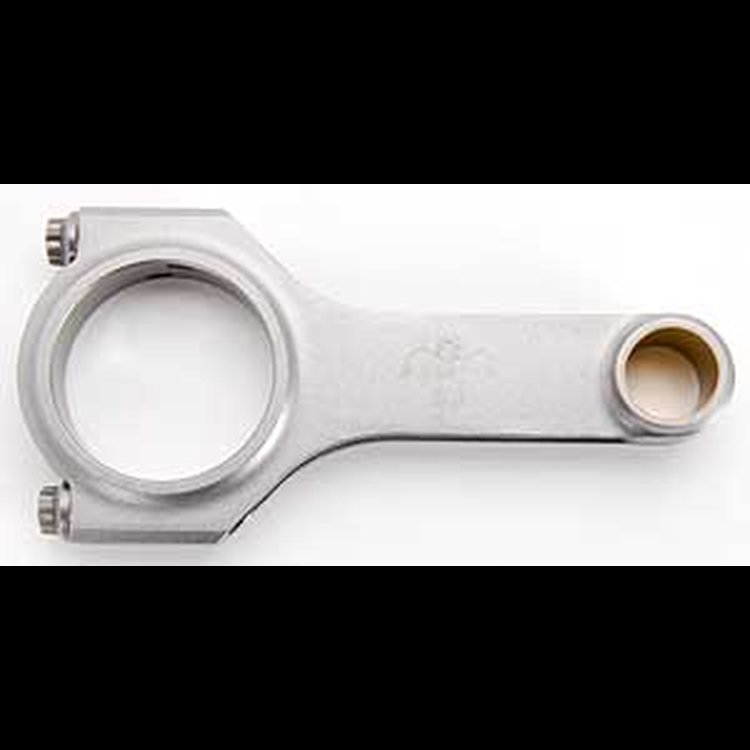

5.090" ESP Connecting Rods 590 grams
$12899
Ships on 09/09/2026
Lowest Price GuaranteeFord 289-302
5.090" ESP Connecting Rods590 grams 1/pkg
EAGLE SPECIALTY PRODUCTS CRS5090F3D-1 Features:
Eagle's commitment to quality and service has resulted in customer loyalty and satisfaction. This, in turn, has fueled rapid growth over the years. Eagle added crankshafts to our lineup a few years later as well as expanding our offerings in connecting rods. Continuous design improvements and improvements in materials and manufacturing techniques have resulted in Eagle being the largest and most respected aftermarket connecting rod and crank manufacturer in the industry. We never stop researching ways to make our products lighter, stronger, more efficient to manufacture, and more diverse. When you stop moving forward, you get passed by the competition.Part TypeConnecting Rod
BrandEAGLE
Package Height1.0
Package Width3.6
Package Length9.5
Weight1.4 PG
Part CategoryPerformance Parts
Connecting Rod Bolt BrandARP
Connecting Rod MaterialForged 4340 steel
Advertised Horsepower Rating (Hp)750 hp
Advertised Rpm Rating7,500 rpm
Connecting Rod Bolt Head Style12-point
Connecting Rod Bolt Material8740 chromoly steel
Wrist Pin StyleFloating
Big End Bore Diameter2.123 in (53.924 mm)
QuantitySold individually
Connecting Rod Beam StyleH-beam
RemanufacturedNo
Connecting Rod Length Center To Center5.09 in (129.286 mm)
Connecting Rod FinishShot-peened
Approximate Connecting Rod Weight (G)590
MagnafluxedYes
Weight Matched SetYes
Fastener Yield Strength (Psi)160,000
Cap Retention StyleCap screw
Pin End Bore Diameter0.912 in (23.2 mm)
Part FitmentSemi Universal
Clearanced For StrokerNo
Vendor Part NumberCRS5090F3D-1
Package Qty1
Package TypeEA
No Questions
No Reviews
