![H-Beam 4340 Forged Connecting Rods [Mazda Miata B6/BP 1.6L & 1.8L]](https://www.jegs.com/images/mini_750/300/356/356-crs5233m3d.jpg)
Vehicle Info NeededEAGLEPART NUMBER: 356-CRS5233M3D

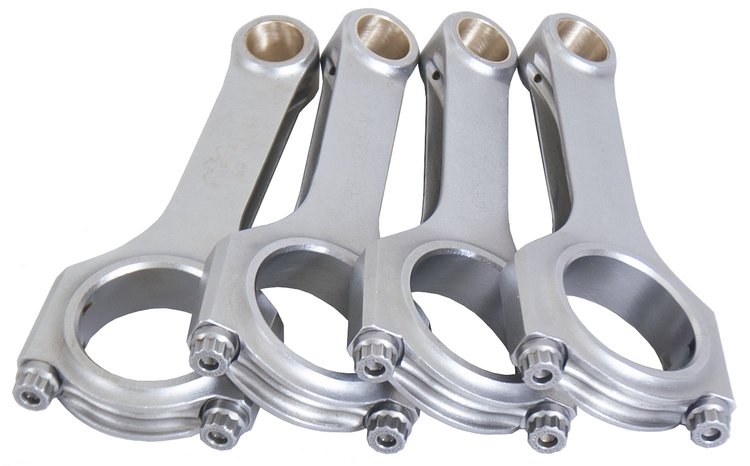

H-Beam 4340 Forged Connecting Rods [Mazda Miata B6/BP 1.6L & 1.8L]
$35499
1 left in stock
Ships Today
Lowest Price GuaranteeMazda
- H-Beam 4340 Forged Connecting Rods
- Mazda Miata B6/BP 1.6L & 1.8L
- Length: 5.233 in.
- Weight: 535 grams
- Pin Size: 0.787 in.
- Floating
- Set of 4 Mazda
•Forged SAE 4340 steel from 2 piece forging|•3/8” ARP 2000 rod bolts, unless otherwise noted|•Alignment sleeves for precise cap location|•Sizing performed with Sunnen Krossgrinding system|•Weight-matched to +/- 1g|•Recommended for competition use up to 900hp
Part TypeConnecting Rod
BrandEAGLE
Package Height4.2
Package Width10.0
Package Length11.6
Weight13.27 PG
Part CategoryPerformance Parts
Connecting Rod Bolt BrandARP
Rod Journal Diameter1.771 in (45 mm)
Connecting Rod MaterialForged 4340 steel
Advertised Rpm Rating9,000 rpm
Connecting Rod Bolt Head Style12-point
Connecting Rod Bolt MaterialARP2000 alloy
Wrist Pin StyleFloating
Big End Bore Diameter0.858 in (21.793 mm)
QuantitySold as a set of 4
Connecting Rod Beam StyleH-beam
Pin End Width0.858 in (21.8 mm)
Big End Width1.89 in (48.006 mm)
Rod Bearings IncludedNo
Connecting Rod Length Center To Center5.233 in (132.918 mm)
Connecting Rod FinishShot-peened
Approximate Connecting Rod Weight (G)535
MagnafluxedYes
Weight Matched SetYes
Fastener Yield Strength (Psi)200,000
Cap Retention StyleCap screw
Pin End Bore Diameter0.787 in (20 mm)
Part FitmentSemi Universal
Clearanced For StrokerNo
Vendor Part NumberCRS5233M3D
Package Qty1
Package TypeEA
