Vehicle Info NeededEAGLEPART NUMBER: 356-CRS5313B63D
M52, M54, S50, S52 Length: 5.313"
$57199
More than 10 available
Ships on Sep 08, 2026
Lowest Price GuaranteeBMW
M52, M54, S50, S52Length: 5.313'' Weight: 540gr Journal: 1.771''
EAGLE SPECIALTY PRODUCTS CRS5313B63D Features:
Eagle's commitment to quality and service has resulted in customer loyalty and satisfaction. This, in turn, has fueled rapid growth over the years. Eagle added crankshafts to our lineup a few years later as well as expanding our offerings in connecting rods. Continuous design improvements and improvements in materials and manufacturing techniques have resulted in Eagle being the largest and most respected aftermarket connecting rod and crank manufacturer in the industry. We never stop researching ways to make our products lighter, stronger, more efficient to manufacture, and more diverse. When you stop moving forward, you get passed by the competition.Durable Forged Rods Suitable for Racing Performance

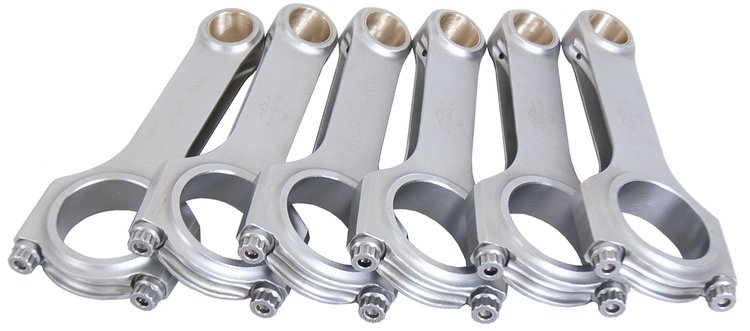

Eagle ESP Import H-beam connecting rods are a 2-piece, forged, vacuum-degassed, 4340-certified steel construction that provides outstanding strength while weighing much less than stock rods. Each rod features multi-stage heat-treatment, X-rayed, sonic-tested, magnafluxed, 100-percent completely machined, and then shot-peened to stress-relieve the metal. The rods have precision cap alignment sleeves to positively locate each rod cap, silicon bronze bushings for floating pin models, and come standard with ARP 2000 rod bolts.
Part TypeConnecting Rod
Product LineEagle ESP Import H-Beam Connecting Rods
BrandEAGLE
Package Height4.2
Package Width9.7
Package Length10.9
Weight8.15 PG
Part CategoryPerformance Parts
Connecting Rod Bolt BrandARP
Rod Journal Diameter1.771 in (45 mm)
Connecting Rod MaterialForged 4340 steel
Advertised Horsepower Rating (Hp)900 hp
Connecting Rod Bolt Head Style12-point
Connecting Rod Bolt MaterialARP2000 alloy
Wrist Pin StyleFloating
Big End Bore Diameter1.89 in (48.006 mm)
QuantitySold as a set of 6
Connecting Rod Beam StyleH-beam
RemanufacturedNo
Pin End Width0.863 in (21.9 mm)
Big End Width0.863 in (21.92 mm)
Connecting Rod Length Center To Center5.313 in (134.95 mm)
Connecting Rod FinishShot-peened
Approximate Connecting Rod Weight (G)540
MagnafluxedYes
Weight Matched SetYes
Fastener Yield Strength (Psi)200,000
Cap Retention StyleCap screw
Pin End Bore Diameter0.866 in (22 mm)
Part FitmentSemi Universal
Clearanced For StrokerNo
Vendor Part NumberCRS5313B63D
Package Qty1
Package TypeEA
