B18A/B Length: 5.394"
InfoVehicle Info Needed
EAGLEPART NUMBER: 356-CRS5394A3D

B18A/B Length: 5.394"

$40699
More than 10 available
ShippingShips Today
Lowest PriceLowest Price Guarantee

Acura/Honda
B18A/B
  • Length: 5.394''
  • Weight: 535gr
  • Journal: 1.771''

    EAGLE SPECIALTY PRODUCTS CRS5394A3D Features:

    Eagle's commitment to quality and service has resulted in customer loyalty and satisfaction. This, in turn, has fueled rapid growth over the years. Eagle added crankshafts to our lineup a few years later as well as expanding our offerings in connecting rods. Continuous design improvements and improvements in materials and manufacturing techniques have resulted in Eagle being the largest and most respected aftermarket connecting rod and crank manufacturer in the industry. We never stop researching ways to make our products lighter, stronger, more efficient to manufacture, and more diverse. When you stop moving forward, you get passed by the competition.
      • Durable Forged Rods Suitable for Racing Performance

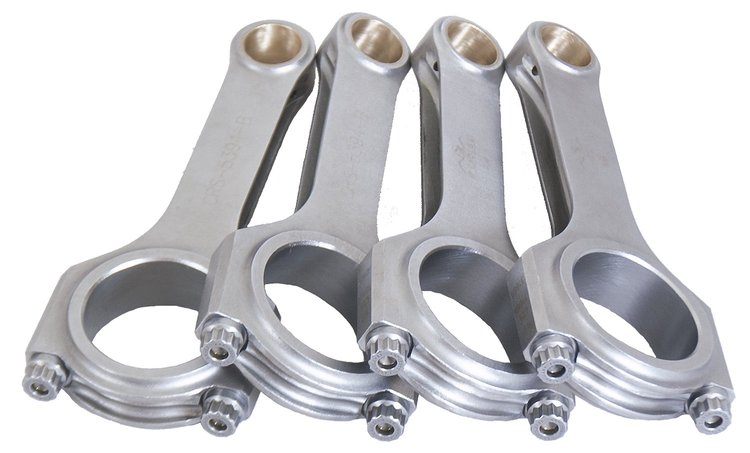

        Eagle ESP Import H-beam connecting rods are a 2-piece, forged, vacuum-degassed, 4340-certified steel construction that provides outstanding strength while weighing much less than stock rods. Each rod features multi-stage heat-treatment, X-rayed, sonic-tested, magnafluxed, 100-percent completely machined, and then shot-peened to stress-relieve the metal. The rods have precision cap alignment sleeves to positively locate each rod cap, silicon bronze bushings for floating pin models, and come standard with ARP 2000 rod bolts.

      Part TypeConnecting Rod
      Product LineEagle ESP Import H-Beam Connecting Rods
      BrandEAGLE
      Package Height4.1
      Package Width9.6
      Package Length10.8
      Weight5.8 PG
      Part CategoryPerformance Parts
      Connecting Rod Bolt BrandARP
      Connecting Rod MaterialForged 4340 steel
      Advertised Horsepower Rating (Hp)900 hp
      Advertised Rpm Rating7,500 rpm
      Connecting Rod Bolt Head Style12-point
      Connecting Rod Bolt MaterialARP2000 alloy
      Wrist Pin StyleFloating
      Big End Bore Diameter1.771 in (44.983 mm)
      QuantitySold as a set of 4
      Connecting Rod Beam StyleH-beam
      RemanufacturedNo
      Pin End Width0.935 in (23.7 mm)
      Big End Width0.935 in (23.749 mm)
      Connecting Rod Length Center To Center5.394 in (137.008 mm)
      Connecting Rod FinishShot-peened
      Approximate Connecting Rod Weight (G)510
      MagnafluxedYes
      Weight Matched SetYes
      Fastener Yield Strength (Psi)200,000
      Cap Retention StyleCap screw
      Pin End Bore Diameter0.748 in (19 mm)
      Part FitmentSemi Universal
      Clearanced For StrokerNo
      Vendor Part NumberCRS5394A3D
      Package Qty1
      Package TypeEA
