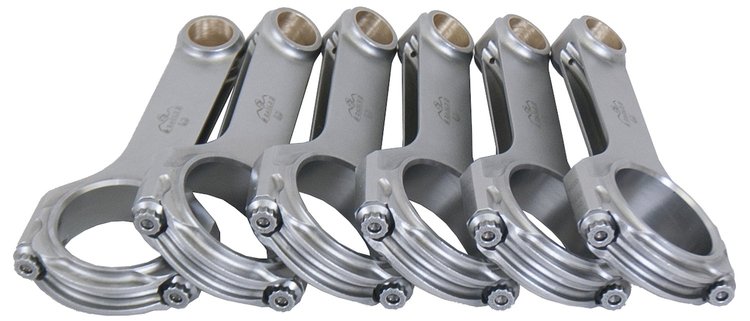

CRS5590T4D H-Beam 4th Generation Design (4D) 5.590 in. Forged Steel Connecting Rod for Toyota 2JZ Engine [Set of 6]

Name: CRS5590T4D H-Beam 4th Generation Design (4D) 5.590 in. Forged Steel Connecting Rod for Toyota 2JZ Engine [Set of 6]
Brand: EAGLE
SKU: 356-CRS5590T4D
Price: 902.99 USD
Availability: InStock

^$902⁹⁹

Ships on 09/15/2026

Lowest Price Guarantee

Toyota

4th Generation Design (4D) Connecting Rods

Toyota 2jz

H-Beam

5.590 in. Center to Center Length

Forged Alloy Steel

Silicon-Bronze Pin Bushing

Pin Size: .866 in.

Rod Journal: 2.047 in.

7/16 in. ARP 2000 Bolts

Set of 6

Eagle 4th Generation H-Beam rods are forged from ASME-certified 4340 steel in a two-piece forging are fully machined with a shot-peened surface. They feature thicker beam webbing for increased power handling capabilities, large beam, cap contact, and shoulder area to improve bore stability under high load. The new small end profile reduces reciprocating weight and are sized to exacting tolerances.

Eagle CRS5590T4D H-Beam 4th Generation Design (4D) 6 in. Forged Steel Connecting Rods Specs:

Bolts: 7/16 in. ARP 2000 (Torque to 75 ft.-lbs w/ARP Moly-Lube)
Material: Forged Proprietary Alloy Steel
Center to Center Length: 5.590 in.
Pin Size: 0.866 in.
Pin End Width: 1.020
Rod Journal: 2.047 in.
Housing Bore: 2.1667 in.
Big End Width: 1.020 in.
Typical Weight: 645 grams
Bushed for Full-Floating Piston Pin
Sold as a Matched Set

Rods That Handle High-Power

Eagle 4th Generation Design (4D) H-Beam Connecting Rods handle more power than other connecting rods and will handle all the power you can make with improved tensile and compressive strength.

Part TypeConnecting Rod

Product LineEagle 4th Generation Design (4D) H-Beam Connecting Rods

BrandEAGLE

Package Height5.0

Package Width10.0

Package Length12.0

Weight9.0 PG

Part CategoryPerformance Parts

Part FitmentSemi Universal

Vendor Part NumberCRS5590T4D

Package Qty1

Package TypeEA
