Vehicle Info NeededEAGLEPART NUMBER: 356-CRS5700SLW

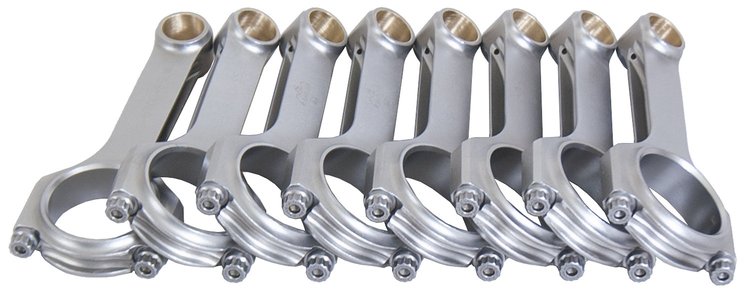

5.700" Lightweight Connecting Rods Small 2.000" Crank Journal
$77099
Ships on Sep 16, 2026
Lowest Price GuaranteeChevy 2.000'' Small Journal Lightweight Connecting Rods
5.700'' Lightweight Connecting RodsSmall 2.000'' Crank Journal 535 grams 8/pkg
EAGLE SPECIALTY PRODUCTS CRS5700SLW Features:
Eagle's commitment to quality and service has resulted in customer loyalty and satisfaction. This, in turn, has fueled rapid growth over the years. Eagle added crankshafts to our lineup a few years later as well as expanding our offerings in connecting rods. Continuous design improvements and improvements in materials and manufacturing techniques have resulted in Eagle being the largest and most respected aftermarket connecting rod and crank manufacturer in the industry. We never stop researching ways to make our products lighter, stronger, more efficient to manufacture, and more diverse. When you stop moving forward, you get passed by the competition.Part TypeConnecting Rod
BrandEAGLE
Package Height4.1
Package Width10.0
Package Length11.6
Weight12.05 PG
Part CategoryPerformance Parts
Connecting Rod Bolt BrandARP
Rod Journal Diameter2 in (50.8 mm)
Connecting Rod MaterialForged 4340 steel
Advertised Horsepower Rating (Hp)600 hp
Connecting Rod Bolt Head Style12-point
Connecting Rod Bolt MaterialARP2000 alloy
Wrist Pin StyleFloating
Big End Bore Diameter2.125 in (53.975 mm)
QuantitySold as a set of 8
Connecting Rod Beam StyleH-beam
RemanufacturedNo
Pin End Width1.06 in (26.9 mm)
Big End Width0.94 in (23.876 mm)
Connecting Rod Length Center To Center5.7 in (144.78 mm)
Connecting Rod FinishShot-peened
Approximate Connecting Rod Weight (G)535
MagnafluxedYes
Weight Matched SetYes
Fastener Yield Strength (Psi)200,000
Cap Retention StyleCap screw
Pin End Bore Diameter0.927 in (23.5 mm)
Part FitmentSemi Universal
Clearanced For StrokerNo
Vendor Part NumberCRS5700SLW
Package Qty1
Package TypeEA
