5.765" ESP Connecting Rods 2.2L Ecotec
InfoVehicle Info Needed
EAGLEPART NUMBER: 356-CRS5765C3D

5.765" ESP Connecting Rods 2.2L Ecotec

$36099
ShippingShips on Nov 24, 2026
Lowest PriceLowest Price Guarantee

Items You Need

Handheld Rod Splitting Tool 1.980"-2.330" Diameter

PROFORM

Handheld Rod Splitting Tool 1.980"-2.330" Diameter

Part Number : 778-67905
$6999
Billet Aluminum Rod Bolt Stretch Gauge Made in the USA

JEGS

Billet Aluminum Rod Bolt Stretch Gauge Made in the USA

Part Number : 555-80591
$7099$76.99
You Save$6.00
Connecting Rod Balancer Scale Fixture [Two Mandrels, Weighs Each End Separately]

PROFORM

Connecting Rod Balancer Scale Fixture [Two Mandrels, Weighs Each End Separately]

Part Number : 778-66844
$27399
Connecting Rod Vise for All Rod Sizes [Red Anodized Aluminum]

PROFORM

Connecting Rod Vise for All Rod Sizes [Red Anodized Aluminum]

Part Number : 778-66769
$6999

GM 4 Cylinder

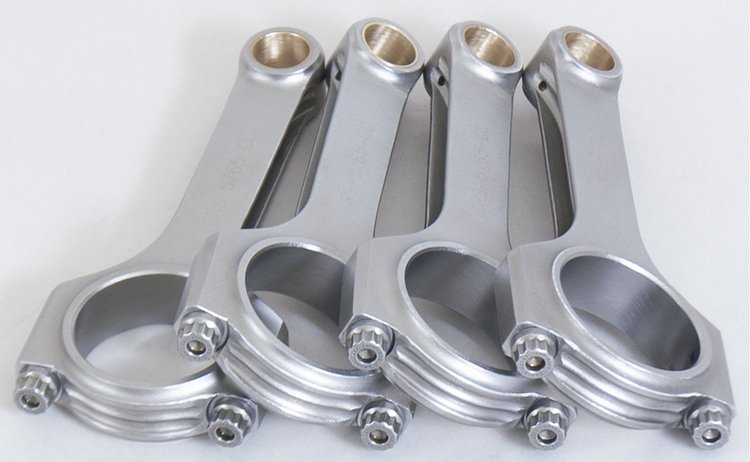

5.765" ESP Connecting Rods
  • 2.2L Ecotec
  • 520 grams
  • 4/pkg

    EAGLE SPECIALTY PRODUCTS CRS5765C3D Features:

    Eagle's commitment to quality and service has resulted in customer loyalty and satisfaction. This, in turn, has fueled rapid growth over the years. Eagle added crankshafts to our lineup a few years later as well as expanding our offerings in connecting rods. Continuous design improvements and improvements in materials and manufacturing techniques have resulted in Eagle being the largest and most respected aftermarket connecting rod and crank manufacturer in the industry. We never stop researching ways to make our products lighter, stronger, more efficient to manufacture, and more diverse. When you stop moving forward, you get passed by the competition.
      • Premium 4340 Forged Steel H-Beam Connecting Rods

        The Eagle ESP H-beam connecting rods are a 2-piece, forged, vacuum-degassed, 4340-certified steel construction that provides outstanding strength, while still weighing much less than stock rods. Each rod is multi-stage heat-treated, X-rayed, sonic-tested, magnafluxed, 100 percent machined and then shot-peened to stress-relieve the metal. The rods have precision cap alignment sleeves to positively locate each rod cap, silicon bronze bushings for floating pin models and are available in stroker models that allow additional cam-to-rod clearance for large stroke combinations. They come standard with 190,000 psi rated ARP 8740 and 230,000 psi rated ARP 2000 rod bolts

      Part TypeConnecting Rod
      Product LineEagle ESP Domestic H-Beam Connecting Rods
      BrandEAGLE
      Package Height4.3
      Package Width9.8
      Package Length10.9
      Weight5.4 PG
      Part CategoryPerformance Parts
      Connecting Rod Bolt BrandARP
      Connecting Rod MaterialForged 4340 steel
      Connecting Rod Bolt Head Style12-point
      Connecting Rod Bolt MaterialARP2000 alloy
      Wrist Pin StyleFloating
      QuantitySold as a set of 4
      Connecting Rod Beam StyleH-beam
      RemanufacturedNo
      Connecting Rod Length Center To Center5.765 in (146.431 mm)
      Connecting Rod FinishShot-peened
      Approximate Connecting Rod Weight (G)550
      MagnafluxedYes
      Weight Matched SetYes
      Fastener Yield Strength (Psi)200,000
      Cap Retention StyleCap screw
      Part FitmentSemi Universal
      Clearanced For StrokerNo
      Vendor Part NumberCRS5765C3D
      Package Qty1
      Package TypeEA
