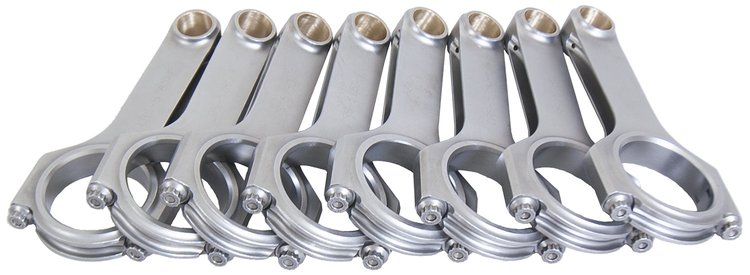

5.780" ESP Connecting Rods 2.310" crank journal

Vehicle Info Needed

EAGLEPART NUMBER: 356-CRS5780F3D

5.780" ESP Connecting Rods 2.310" crank journal

Name: 5.780" ESP Connecting Rods 2.310" crank journal
Brand: EAGLE
SKU: 356-CRS5780F3D
Price: 683.99 USD
Availability: InStock

^$683⁹⁹

3 left in stock

Ships on Sep 08, 2026

Lowest Price Guarantee

Ford 351C

2.310" crank journal
.912" piston pin
660 grams
8/pkg

Use 351W rod bearings

Part TypeConnecting Rod

BrandEAGLE

Package Height4.1

Package Width9.6

Package Length10.9

Weight12.6 PG

Part CategoryPerformance Parts

Connecting Rod Bolt BrandARP

Rod Journal Diameter2.311 in (58.7 mm)

Advertised Horsepower Rating (Hp)750 hp

Connecting Rod Bolt Head Style12-point

Connecting Rod Bolt Material8740 chromoly steel

Wrist Pin StyleFloating

Connecting Rod Beam StyleH-beam

RemanufacturedNo

Big End Width0.831 in (21.107 mm)

Approximate Connecting Rod Weight (G)660

Weight Matched SetYes

Fastener Yield Strength (Psi)160,000

Clearanced For StrokerNo

Connecting Rod MaterialForged 4340 steel

Advertised Rpm Rating7,500 rpm

Big End Bore Diameter2.426 in (61.62 mm)

QuantitySold as a set of 8

Pin End Width1.06 in (26.9 mm)

Connecting Rod Length Center To Center5.78 in (146.812 mm)

Connecting Rod FinishShot-peened

MagnafluxedYes

Cap Retention StyleCap screw

Pin End Bore Diameter0.913 in (23.2 mm)

Part FitmentSemi Universal

Vendor Part NumberCRS5780F3D

Package Qty1

Package TypeEA
