Lowest Price GuaranteeToyota

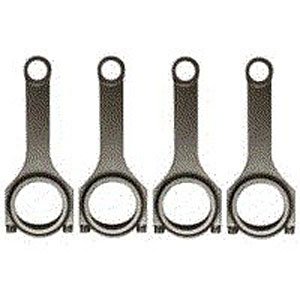

22RLength: 5.819'' Weight: 680gr Journal: 2.086''
EAGLE SPECIALTY PRODUCTS CRS5819T3D Features:
Eagle's commitment to quality and service has resulted in customer loyalty and satisfaction. This, in turn, has fueled rapid growth over the years. Eagle added crankshafts to our lineup a few years later as well as expanding our offerings in connecting rods. Continuous design improvements and improvements in materials and manufacturing techniques have resulted in Eagle being the largest and most respected aftermarket connecting rod and crank manufacturer in the industry. We never stop researching ways to make our products lighter, stronger, more efficient to manufacture, and more diverse. When you stop moving forward, you get passed by the competition.Part TypeConnecting Rod
BrandEAGLE
Package Height4.2
Package Width9.7
Package Length10.9
Weight6.75 PG
Part CategoryPerformance Parts
Connecting Rod Bolt BrandARP
Rod Journal Diameter2.086 in (53 mm)
Connecting Rod MaterialForged 4340 steel
Advertised Horsepower Rating (Hp)600 hp
Connecting Rod Bolt Head Style12-point
Connecting Rod Bolt Material8740 chromoly steel
Wrist Pin StyleFloating
Big End Bore Diameter2.205 in (56.007 mm)
QuantitySold as a set of 4
Connecting Rod Beam StyleH-beam
RemanufacturedNo
Pin End Width1.092 in (27.7 mm)
Big End Width1.091 in (27.711 mm)
Connecting Rod Length Center To Center5.819 in (147.803 mm)
Connecting Rod FinishShot-peened
Approximate Connecting Rod Weight (G)530
MagnafluxedYes
Weight Matched SetYes
Fastener Yield Strength (Psi)160,000
Cap Retention StyleCap screw
Pin End Bore Diameter0.866 in (22 mm)
Part FitmentSemi Universal
Clearanced For StrokerNo
Vendor Part NumberCRS5819T3D
Package Qty1
Package TypeEA
