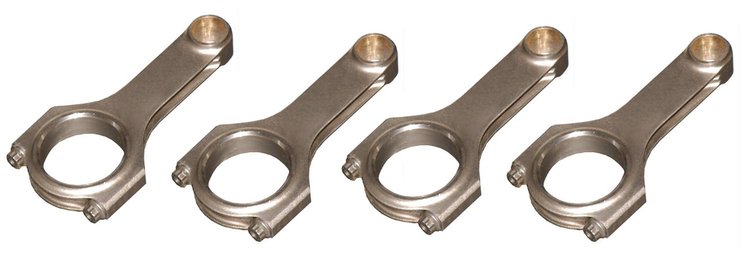

CRS-5893A3D Forged 4340 Steel H-Beam Rods for Honda F22C Engine [5.893 in. Length]
InfoVehicle Info Needed
EAGLEPART NUMBER: 356-CRS5893A3D

CRS-5893A3D Forged 4340 Steel H-Beam Rods for Honda F22C Engine [5.893 in. Length]

$40699
ShippingShips Today
Lowest PriceLowest Price Guarantee

Items You Need

Deluxe Piston Ring Expander Tool Universal

TOTAL SEAL

Deluxe Piston Ring Expander Tool Universal

Part Number : 901-HAS1723
$2183
Piston Installation Kit Includes: Universal Ring Squaring Tool, Ring Compressor, & Heavy Duty Piston Install Tool

PROFORM

Piston Installation Kit Includes: Universal Ring Squaring Tool, Ring Compressor, & Heavy Duty Piston Install Tool

Part Number : 778-67652K3
$9548
Wrinkle Band Ring Compressor Adjustable for 3" -5" Bore Sizes

JEGS

Wrinkle Band Ring Compressor Adjustable for 3" -5" Bore Sizes

Part Number : 555-W80574
$1599$17.99
You Save$2.00
32-Blade Feeler Gauge Kit 0.0015" to 0.035" (0.038mm to 0.889mm)

JEGS

32-Blade Feeler Gauge Kit 0.0015" to 0.035" (0.038mm to 0.889mm)

Part Number : 555-80500
$999$10.99
You Save$1.00

Acura/Honda
Forged 4340 Steel H-Beam Rods
  • Honda F22C Engine
  • Length: 5.893 in.
  • Fits Rod Journal: 1.889 in.
  • Pin Size: 0.906 in.
  • Typical Weight: 590 g
  • Bolts: 3/8 in. ARP 2000
  • Bushed
  • Set of 4

    Eagle CRS-5893A3D Forged 4340 Steel H-Beam Rods Features:

    • Forged from a two-piece forging and feature a fully machined and shot-peened surface
    • Sizing is held to exact tolerances
    • Sold as a weight-matched set
    • Equipped with ARP 2000 bolts for even more power-handling capability
    • Recommended for competition use
  • Eagle CRS-5893A3D Forged 4340 Steel H-Beam Rods Specs:

    • Bolts: 3/8 in. ARP 2000
    • Material: forged 4340 steel
    • Center to center length: 5.893 in.
    • Pin size: 0.906 in.
    • Pin end width: 0.941 in.
    • Rod journal: 1.889 in.
    • Housing bore: 2.008 in.
    • Big end width: 0.941 in.
    • Typical weight: 590g
    • Bushed for full-floating piston pin

      Durable Forged Rods Suitable for Racing Performance

      Eagle ESP Import H-beam connecting rods are a 2-piece, forged, vacuum-degassed, 4340-certified steel construction that provides outstanding strength while weighing much less than stock rods. Each rod features multi-stage heat-treatment, X-rayed, sonic-tested, magnafluxed, 100-percent completely machined, and then shot-peened to stress-relieve the metal. The rods have precision cap alignment sleeves to positively locate each rod cap, silicon bronze bushings for floating pin models, and come standard with ARP 2000 rod bolts.

    Part TypeConnecting Rod
    Product LineEagle ESP Import H-Beam Connecting Rods
    BrandEAGLE
    Package Height4.0
    Package Width10.0
    Package Length12.0
    Weight6.0 PG
    Part CategoryPerformance Parts
    Connecting Rod Bolt BrandARP
    Approximate Connecting Rod Weight (G)590
    Connecting Rod MaterialForged 4340 steel
    Connecting Rod Bolt MaterialARP2000 alloy
    Cap Retention StyleCap screw
    Connecting Rod Beam StyleH-beam
    Part FitmentDirect Fit
    Vendor Part NumberCRS5893A3D
    Package Qty1
    Package TypeEA
    Some parts are not legal for use in California or other states with similar laws / regulations
    p65 warning
