Eagle 4th Generation H-Beam rods are forged from ASME-certified 4340 steel in a two-piece forging are fully machined with a shot-peened surface. They feature thicker beam webbing for increased power handling capabilities, large beam, cap contact, and shoulder area to improve bore stability under high load. The new small end profile reduces reciprocating weight and are sized to exacting tolerances.

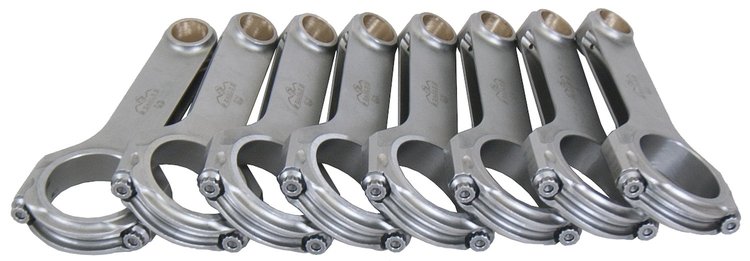

Eagle CRS6000B4D H-Beam 4th Generation Design (4D) 6 in. Forged Steel Connecting Rods Specs:

• Bolts: 7/16 in. ARP 2000 (Torque to 75 ft.-lbs w/ARP Moly-Lube)
• Material: Forged Proprietary Alloy Steel
• Center to Center Length: 6 in.
• Pin Size: 0.927 in.
• Pin End Width: 1.06
• Rod Journal: 2.100 in.
• Housing Bore: 2.225 in.
• Big End Width: 0.940 in.
• Typical Weight: 655 grams
• Bushed for Full-Floating Piston Pin
• Sold as a Matched Set
