Ford 4 Cylinder

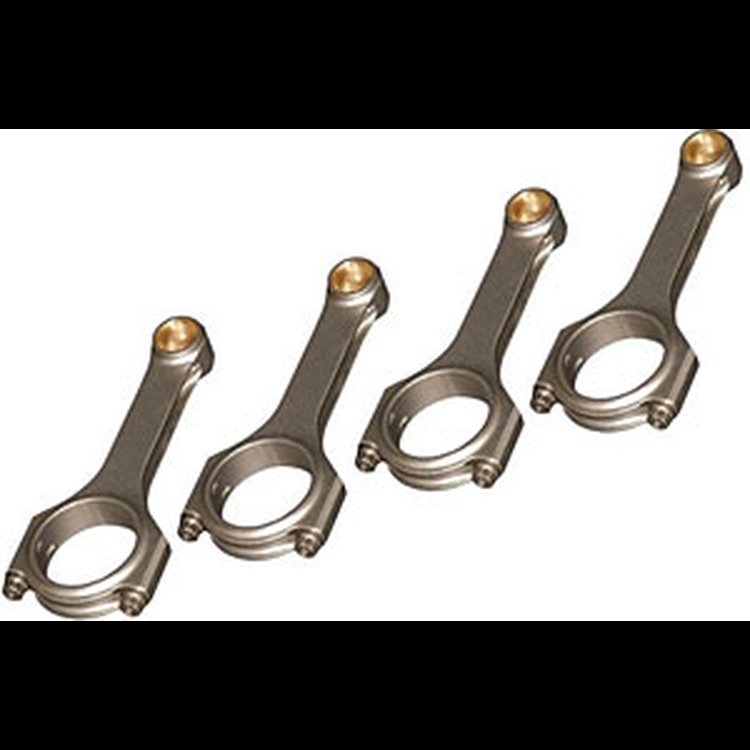

6.094'' ESP Connecting Rods2.3L Duratec Non Turbo 565 grams 4/pkg
EAGLE SPECIALTY PRODUCTS CRS6094F3D Features:
Eagle's commitment to quality and service has resulted in customer loyalty and satisfaction. This, in turn, has fueled rapid growth over the years. Eagle added crankshafts to our lineup a few years later as well as expanding our offerings in connecting rods. Continuous design improvements and improvements in materials and manufacturing techniques have resulted in Eagle being the largest and most respected aftermarket connecting rod and crank manufacturer in the industry. We never stop researching ways to make our products lighter, stronger, more efficient to manufacture, and more diverse. When you stop moving forward, you get passed by the competition.Part TypeConnecting Rod
BrandEAGLE
Package Height4.1
Package Width9.9
Package Length10.8
Weight8.65 PG
Part CategoryPerformance Parts
Connecting Rod Bolt BrandARP
Rod Journal Diameter1.968 in (50 mm)
Connecting Rod MaterialForged 4340 steel
Advertised Horsepower Rating (Hp)900 hp
Connecting Rod Bolt Head Style12-point
Connecting Rod Bolt MaterialARP2000 alloy
Wrist Pin StyleFloating
Big End Bore Diameter2.088 in (53.035 mm)
QuantitySold as a set of 4
Connecting Rod Beam StyleH-beam
RemanufacturedNo
Pin End Width0.71 in (18 mm)
Big End Width0.91 in (23.114 mm)
Connecting Rod Length Center To Center6.094 in (154.788 mm)
Connecting Rod FinishShot-peened
Approximate Connecting Rod Weight (G)565
MagnafluxedYes
Weight Matched SetYes
Fastener Yield Strength (Psi)200,000
Cap Retention StyleCap screw
Pin End Bore Diameter0.827 in (21 mm)
Part FitmentSemi Universal
Clearanced For StrokerNo
Vendor Part NumberCRS6094F3D
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
