Vehicle Info NeededEAGLEPART NUMBER: 356-CRS6125O3D

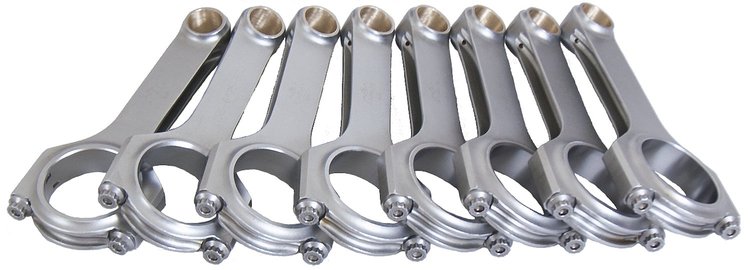

6.125" ESP Connecting Rods Large 2.100" Crank Journal
$70699
2 left in stock
Ships Today
Lowest Price GuaranteeChevrolet/Pontiac LS-series
6.125'' ESP Connecting RodsLarge 2.100'' Crank Journal 620 grams 8/pkg
EAGLE SPECIALTY PRODUCTS CRS6125O3D Features:
Eagle's commitment to quality and service has resulted in customer loyalty and satisfaction. This, in turn, has fueled rapid growth over the years. Eagle added crankshafts to our lineup a few years later as well as expanding our offerings in connecting rods. Continuous design improvements and improvements in materials and manufacturing techniques have resulted in Eagle being the largest and most respected aftermarket connecting rod and crank manufacturer in the industry. We never stop researching ways to make our products lighter, stronger, more efficient to manufacture, and more diverse. When you stop moving forward, you get passed by the competition.Premium 4340 Forged Steel H-Beam Connecting Rods
The Eagle ESP H-beam connecting rods are a 2-piece, forged, vacuum-degassed, 4340-certified steel construction that provides outstanding strength, while still weighing much less than stock rods. Each rod is multi-stage heat-treated, X-rayed, sonic-tested, magnafluxed, 100 percent machined and then shot-peened to stress-relieve the metal. The rods have precision cap alignment sleeves to positively locate each rod cap, silicon bronze bushings for floating pin models and are available in stroker models that allow additional cam-to-rod clearance for large stroke combinations. They come standard with 190,000 psi rated ARP 8740 and 230,000 psi rated ARP 2000 rod bolts
Part TypeConnecting Rod
Product LineEagle ESP Domestic H-Beam Connecting Rods
BrandEAGLE
Package Height4.2
Package Width9.7
Package Length10.8
Weight11.9 PG
Part CategoryPerformance Parts
Connecting Rod Bolt BrandARP
Rod Journal Diameter2.1 in (53.3 mm)
Advertised Horsepower Rating (Hp)700 hp
Connecting Rod Bolt Head Style12-point
Connecting Rod Bolt Material8740 chromoly steel
Wrist Pin StyleFloating
Connecting Rod Beam StyleH-beam
RemanufacturedNo
Big End Width0.94 in (23.876 mm)
Approximate Connecting Rod Weight (G)620
Weight Matched SetYes
Fastener Yield Strength (Psi)160,000
Clearanced For StrokerNo
Connecting Rod MaterialForged 4340 steel
Advertised Rpm Rating7,500 rpm
Big End Bore Diameter2.225 in (56.515 mm)
QuantitySold as a set of 8
Pin End Width1.06 in (26.9 mm)
Connecting Rod Length Center To Center6.125 in (155.575 mm)
Connecting Rod FinishShot-peened
MagnafluxedYes
Cap Retention StyleCap screw
Pin End Bore Diameter0.927 in (23.5 mm)
Part FitmentSemi Universal
Vendor Part NumberCRS6125O3D
Package Qty1
Package TypeEA
