Vehicle Info NeededEAGLEPART NUMBER: 356-CRS6490F3D-1

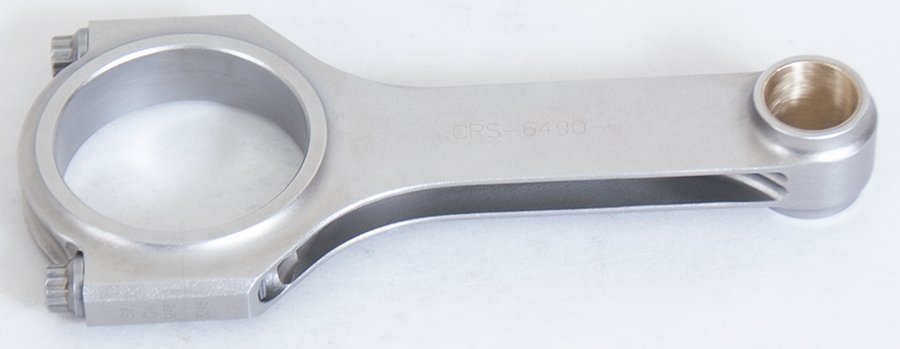

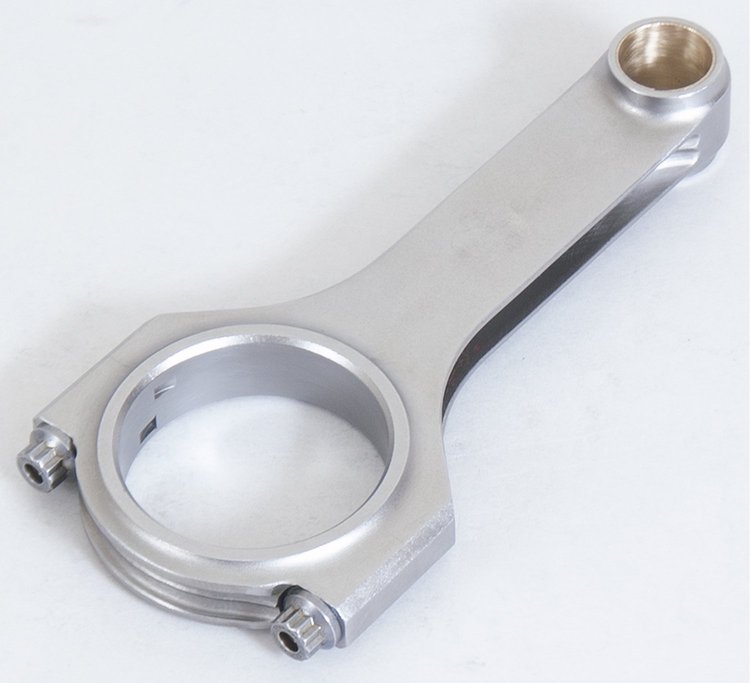

6.490" ESP Connecting Rods 805 grams
$13599
Ships on 09/08/2026
Lowest Price GuaranteeFord 360/390/427 FE
6.490" ESP Connecting Rods805 grams 1/pkg
EAGLE SPECIALTY PRODUCTS CRS6490F3D-1 Features:
Eagle's commitment to quality and service has resulted in customer loyalty and satisfaction. This, in turn, has fueled rapid growth over the years. Eagle added crankshafts to our lineup a few years later as well as expanding our offerings in connecting rods. Continuous design improvements and improvements in materials and manufacturing techniques have resulted in Eagle being the largest and most respected aftermarket connecting rod and crank manufacturer in the industry. We never stop researching ways to make our products lighter, stronger, more efficient to manufacture, and more diverse. When you stop moving forward, you get passed by the competition.Part TypeConnecting Rod
BrandEAGLE
Package Height1.35
Package Width4.85
Package Length9.9
Weight1.775 PG
Part CategoryPerformance Parts
Connecting Rod Bolt BrandARP
Rod Journal Diameter2.438 in (61.9 mm)
Connecting Rod MaterialForged 4340 steel
Advertised Horsepower Rating (Hp)750 hp
Advertised Rpm Rating8,500 rpm
Connecting Rod Bolt Head Style12-point
Connecting Rod Bolt Material8740 chromoly steel
Wrist Pin StyleFloating
Big End Bore Diameter2.59 in (65.786 mm)
QuantitySold individually
Connecting Rod Beam StyleH-beam
RemanufacturedNo
Connecting Rod Length Center To Center6.49 in (164.846 mm)
Connecting Rod FinishShot-peened
Approximate Connecting Rod Weight (G)805
MagnafluxedYes
Weight Matched SetYes
Fastener Yield Strength (Psi)160,000
Cap Retention StyleCap screw
Pin End Bore Diameter0.975 in (24.8 mm)
Part FitmentSemi Universal
Clearanced For StrokerNo
Vendor Part NumberCRS6490F3D-1
Package Qty1
Package TypeEA
