Vehicle Info NeededEAGLEPART NUMBER: 356-CRS6657F3D

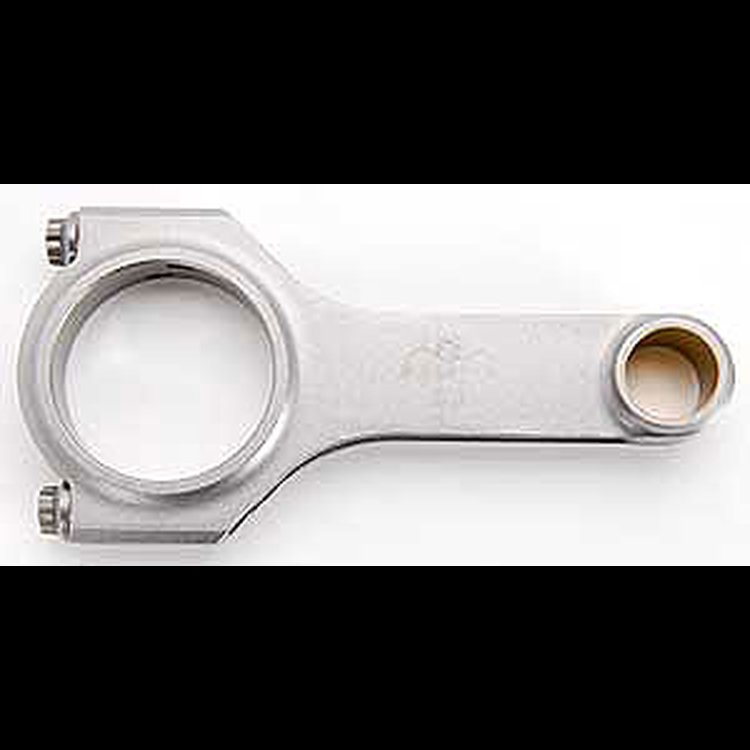

6.657" ESP Connecting Rods 5.4L Ford Modular
$81199
2 left in stock
Ships Today
Lowest Price GuaranteeFord Modular Engine
6.657'' ESP Connecting Rods5.4L Ford Modular 630 grams 8/pkg
EAGLE SPECIALTY PRODUCTS CRS6657F3D Features:
Eagle's commitment to quality and service has resulted in customer loyalty and satisfaction. This, in turn, has fueled rapid growth over the years. Eagle added crankshafts to our lineup a few years later as well as expanding our offerings in connecting rods. Continuous design improvements and improvements in materials and manufacturing techniques have resulted in Eagle being the largest and most respected aftermarket connecting rod and crank manufacturer in the industry. We never stop researching ways to make our products lighter, stronger, more efficient to manufacture, and more diverse. When you stop moving forward, you get passed by the competition.Part TypeConnecting Rod
BrandEAGLE
Package Height4.1
Package Width9.8
Package Length10.9
Weight15.4 PG
Part CategoryPerformance Parts
Connecting Rod Bolt BrandARP
Rod Journal Diameter2.086 in (53 mm)
Connecting Rod MaterialForged 4340 steel
Advertised Horsepower Rating (Hp)750 hp
Connecting Rod Bolt Head Style12-point
Connecting Rod Bolt MaterialARP2000 alloy
Wrist Pin StyleFloating
Big End Bore Diameter2.238 in (56.845 mm)
QuantitySold individually
Connecting Rod Beam StyleH-beam
RemanufacturedNo
Pin End Width0.939 in (23.9 mm)
Big End Width0.937 in (23.8 mm)
Connecting Rod Length Center To Center6.657 in (169.088 mm)
Connecting Rod FinishShot-peened
Approximate Connecting Rod Weight (G)630
MagnafluxedYes
Weight Matched SetYes
Fastener Yield Strength (Psi)200,000
Cap Retention StyleCap screw
Pin End Bore Diameter0.866 in (22 mm)
Part FitmentSemi Universal
Clearanced For StrokerYes
Vendor Part NumberCRS6657F3D
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
