Vehicle Info NeededEAGLEPART NUMBER: 356-FSI5700B

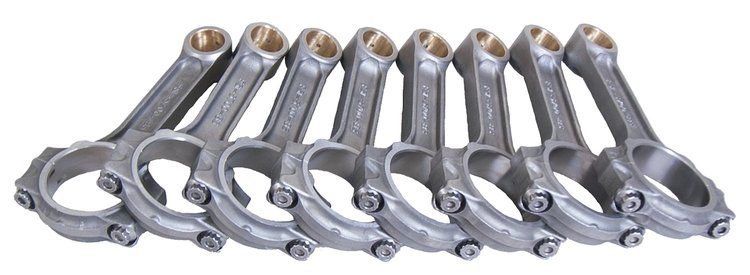

FSI Series I-Beam Connecting Rods Small Block Chevy
$46699
1 left in stock
Ships on Nov 02, 2026
Lowest Price GuaranteeChevrolet 305-350ci FSI I-Beam Connecting Rods
FSI Series I-Beam Connecting RodsSmall Block Chevy 5.700" Center-to-Center Bushed Piston Pin 7/16" ARP 8740 Cap Screws (Up to 700hp) 590 Grams 8/pkg.
Tech Specs:
- Material: Forged 4340 Steel
- Length (Center-to-Center): 5.700"
- Rod Journal: 2.1000"
- Housing Bore: 2.2250"
- Wrist Pin Type: Bushed
- Wrist Pin Size: 0.927"
- Big End Width: 0.9400"
- Wrist Pin End Width: 1.0000"
- Thickness Above Wrist Pin: 0.210"
- Fasteners: 7/16" ARP 8740
- Typical Weigth: 590 grams
- Recommended Up to 700 HP
Forged from SAE/AISI certified 4340 steel, Eagle's ''FSI'' I-Beam rods offer a high-strength, lower cost alternative to their H-Beam rods. Eagle ''FSI'' I-Beam rods are equipped with 7/16'' ARP bolts and silicon-bronze wrist pin bushings for performance and pump gas racing applications. Big end sizing is performed with Sunnen's Krossgrinding system to ensure perfect sizing. I-Beam design is lighter and less expensive than H-Beam designs.
Features:
- I-Beam Design
- Forged 4340 Steel
- 7/16'' ARP 8740 or 2000 Series Bolts
- Silicon-Bronze Wrist Pin Bushings
Part TypeConnecting Rod
Product LineEagle FSI I-Beam Connecting Rods
BrandEAGLE
Package Height4.1
Package Width10.0
Package Length10.8
Weight11.3 PG
Part CategoryPerformance Parts
Rod Journal Diameter2.1 in (53.3 mm)
Big End Bore Diameter2.225 in (56.515 mm)
Part FitmentSemi Universal
Pin End Width1 in (25.4 mm)
Big End Width0.94 in (23.876 mm)
ToolStroker Combinations
Connecting Rod Length Center To Center5.7 in (144.78 mm)
Vendor Part NumberFSI5700B
Package Qty1
Package TypeEA
