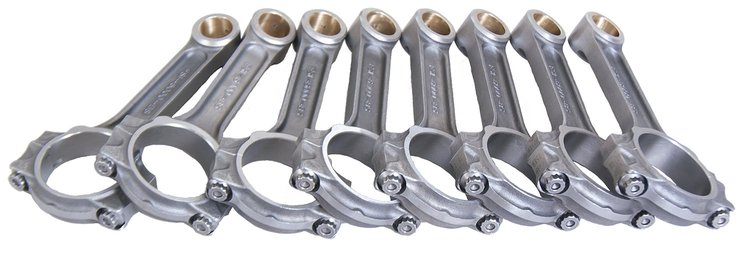

Chevrolet 305-350ci FSI I-Beam Connecting Rods
FSI Series I-Beam Connecting Rods
  • Small Block Chevy
  • 6.000" Center-to-Center
  • Bushed Piston Pin
  • 7/16" ARP 8740 Cap Screws (Up to 700hp)
  • 610 Grams
  • 8/pkg.

    Tech Specs:

    • Material: Forged 4340 Steel
    • Length (Center-to-Center): 6.000"
    • Rod Journal: 2.1000"
    • Housing Bore: 2.2250"
    • Wrist Pin Type: Bushed
    • Wrist Pin Size: 0.927"
    • Big End Width: 0.9400"
    • Wrist Pin End Width: 1.0000"
    • Thickness Above Wrist Pin: 0.210"
    • Fasteners: 7/16" ARP 8740
    • Typical Weigth: 615 grams
    • Recommended Up to 700 HP

    • Forged from SAE/AISI certified 4340 steel, Eagle's ''FSI'' I-Beam rods offer a high-strength, lower cost alternative to their H-Beam rods. Eagle ''FSI'' I-Beam rods are equipped with 7/16'' ARP bolts and silicon-bronze wrist pin bushings for performance and pump gas racing applications. Big end sizing is performed with Sunnen's Krossgrinding system to ensure perfect sizing. I-Beam design is lighter and less expensive than H-Beam designs.

    Features:

    • I-Beam Design
    • Forged 4340 Steel
    • 7/16'' ARP 8740 or 2000 Series Bolts
    • Silicon-Bronze Wrist Pin Bushings
    Part TypeConnecting Rod
    Product LineEagle FSI I-Beam Connecting Rods
    BrandEAGLE
    Package Height4.1
    Package Width9.5
    Package Length10.7
    Weight11.4 PG
    Part CategoryPerformance Parts
    Rod Journal Diameter2.1 in (53.3 mm)
    Big End Bore Diameter2.225 in (56.515 mm)
    Part FitmentSemi Universal
    Pin End Width1 in (25.4 mm)
    Big End Width0.94 in (23.876 mm)
    ToolStroker Combinations
    Connecting Rod Length Center To Center6 in (152.4 mm)
    Vendor Part NumberFSI6000B
    Package Qty1
    Package TypeEA
