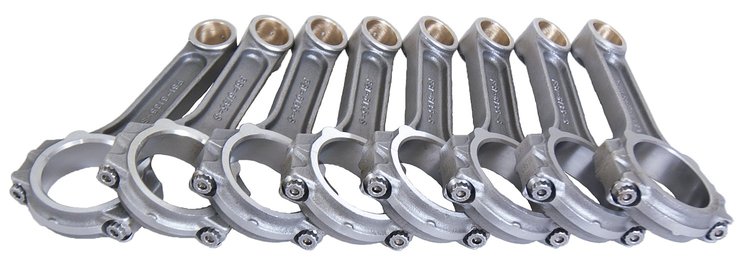

FSI Series I-Beam Connecting Rods Big Block Chevy
InfoVehicle Info Needed
EAGLEPART NUMBER: 356-FSI6135

FSI Series I-Beam Connecting Rods Big Block Chevy

$51599
ShippingShips on 09/08/2026
Lowest PriceLowest Price Guarantee

Chevrolet 396-454ci FSI I-Beam Connecting Rods
FSI Series I-Beam Connecting Rods
  • Big Block Chevy
  • 6.135" Center-to-Center
  • Bushed Piston Pin
  • 7/16" ARP 8740 Cap Screws (Up to 800hp)
  • 800 Grams
  • 8/pkg.

    Tech Specs:

    • Material: Forged 4340 Steel
    • Length (Center-to-Center): 6.135"
    • Rod Journal: 2.2000"
    • Housing Bore: 2.3250"
    • Wrist Pin Type: Bushed
    • Wrist Pin Size: 0.990"
    • Big End Width: 0.9900"
    • Wrist Pin End Width: 1.0250"
    • Thickness Above Wrist Pin: 0.200"
    • Fasteners: 7/16" ARP 8740
    • Typical Weigth: 800 grams
    • Recommended Up to 800 HP
  • Forged from SAE/AISI certified 4340 steel, Eagle's ''FSI'' I-Beam rods offer a high-strength, lower cost alternative to their H-Beam rods. Eagle ''FSI'' I-Beam rods are equipped with 7/16'' ARP bolts and silicon-bronze wrist pin bushings for performance and pump gas racing applications. Big end sizing is performed with Sunnen's Krossgrinding system to ensure perfect sizing. I-Beam design is lighter and less expensive than H-Beam designs.

    Features:

    • I-Beam Design
    • Forged 4340 Steel
    • 7/16'' ARP 8740 or 2000 Series Bolts
    • Silicon-Bronze Wrist Pin Bushings
    Part TypeConnecting Rod
    Product LineEagle FSI I-Beam Connecting Rods
    BrandEAGLE
    Package Height4.1
    Package Width9.46
    Package Length10.8
    Weight14.45 PG
    Part CategoryPerformance Parts
    Part FitmentSemi Universal
    Vendor Part NumberFSI6135
    Package Qty1
    Package TypeEA
