Vehicle Info NeededEAGLEPART NUMBER: 356-FSI6800

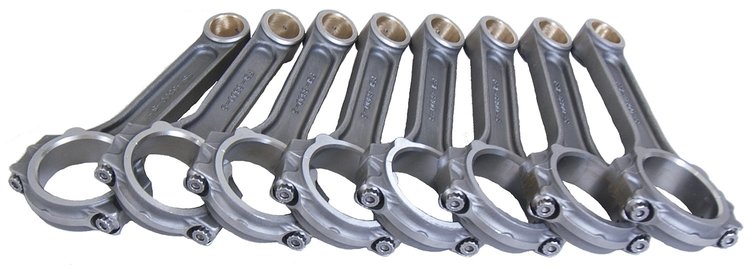

FSI Series I-Beam Connecting Rods Big Block Chevy
$51299
Ships on 09/16/2026
Lowest Price GuaranteeChevrolet 396-454ci FSI I-Beam Connecting Rods
FSI Series I-Beam Connecting RodsBig Block Chevy 6.800" Center-to-Center Bushed Piston Pin 7/16" ARP 8740 Cap Screws (Up to 800hp) 830 Grams 8/pkg.
Tech Specs:
- Material: Forged 4340 Steel
- Length (Center-to-Center): 6.800"
- Rod Journal: 2.2000"
- Housing Bore: 2.3250"
- Wrist Pin Type: Bushed
- Wrist Pin Size: 0.990"
- Big End Width: 0.9900"
- Wrist Pin End Width: 1.0250"
- Thickness Above Wrist Pin: 0.200"
- Fasteners: 7/16" ARP 8740
- Typical Weigth: 830 grams
- Recommended Up to 800 HP
Forged from SAE/AISI certified 4340 steel, Eagle's ''FSI'' I-Beam rods offer a high-strength, lower cost alternative to their H-Beam rods. Eagle ''FSI'' I-Beam rods are equipped with 7/16'' ARP bolts and silicon-bronze wrist pin bushings for performance and pump gas racing applications. Big end sizing is performed with Sunnen's Krossgrinding system to ensure perfect sizing. I-Beam design is lighter and less expensive than H-Beam designs.
Features:
- I-Beam Design
- Forged 4340 Steel
- 7/16'' ARP 8740 or 2000 Series Bolts
- Silicon-Bronze Wrist Pin Bushings
Part TypeConnecting Rod
Product LineEagle FSI I-Beam Connecting Rods
BrandEAGLE
Package Height4.2
Package Width9.7
Package Length10.7
Weight15.055 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberFSI6800
Package Qty1
Package TypeEA
