Vehicle Info NeededEAGLEPART NUMBER: 356-SIR5090FP-1

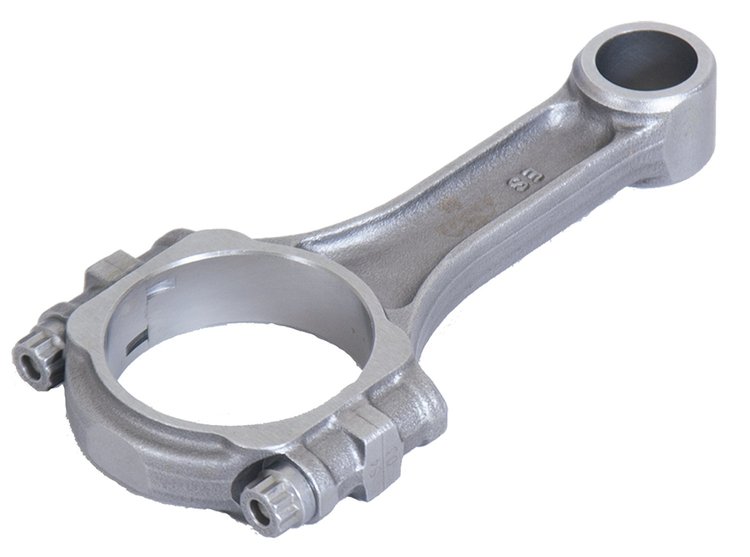

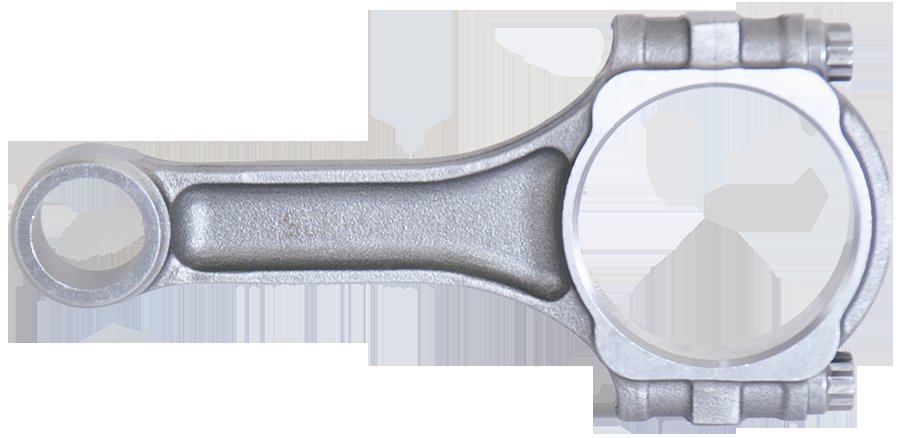

SIR5090FP-1 5140 Steel I-Beam Ford 302 5.090 in. Press
$6899
2 left in stock
Ships Today
Lowest Price GuaranteeFord Small Block 302-351W
Single 5.090 in. 5140 Steel I-BeamPress-Fit Pin 3/8 in. ARP 8740 Bolts
Eagle SIR5090FP-1 Features:
- Bolts: 3/8 in. ARP 8740
- Matieral: Forged 5140 Steel
- Center to Center Length: 5.090 in.
- Pin Size: 0.912
- Pin End Width: 0.995
- Rod Journal: 2.123
- Housing Bore: 2.2394
- Big End Width: 0.8315
- For press-fit piston pins
Part TypeConnecting Rod
BrandEAGLE
Package Height4.0
Package Width9.5
Package Length10.8
Weight9.9 PG
Part CategoryPerformance Parts
Connecting Rod Bolt BrandARP
Connecting Rod MaterialForged 5140 steel
Advertised Horsepower Rating (Hp)500 hp
Advertised Rpm Rating6,000 rpm
Connecting Rod Bolt Head Style12-point
Connecting Rod Bolt Material8740 chromoly steel
Wrist Pin StylePress-fit
Big End Bore Diameter2.123 in (53.924 mm)
QuantitySold individually
Connecting Rod Beam StyleI-beam
RemanufacturedNo
Connecting Rod Length Center To Center5.09 in (129.286 mm)
Connecting Rod FinishShot-peened
Approximate Connecting Rod Weight (G)565
MagnafluxedNo
Weight Matched SetYes
Fastener Yield Strength (Psi)160,000
Cap Retention StyleCap screw
Pin End Bore Diameter0.912 in (23.2 mm)
Part FitmentSemi Universal
Clearanced For StrokerNo
Vendor Part NumberSIR5090FP-1
Package Qty1
Package TypeEA
