Vehicle Info NeededEAGLEPART NUMBER: 356-SIR5090FP

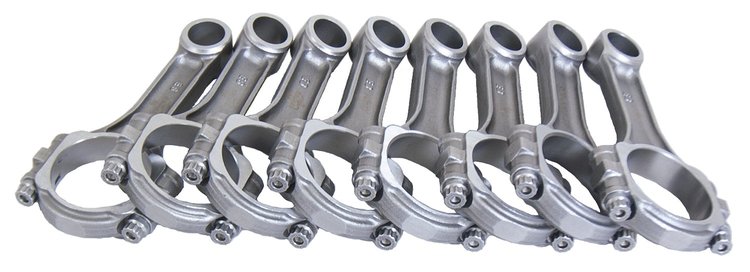

302ci/5.0L 5.090" Connecting Rods Pressed Piston Pin
$35299
1 left in stock
Ships Today
Lowest Price GuaranteeFord Small Block 302-351W
302ci/5.0L 5.090'' Connecting RodsPressed Piston Pin 3/8'' Capscrew Rod bolt 565-grams Set of 8
Features:
- Designed for naturally-aspirated, pump-gas street-driven engines
- Forged 5140 steel construction
- ARP 8740 capscrew bolts
Absolutely the Best Value in Steel Rods
Eagle Specialty Products SIR Connecting Rods are an economically priced alternative to the time and expense involved in reworking OE connecting rods. SIR connecting rods are forged from 5140 steel with up to 50 percent increase in strength over stock rods. All rods are weight matched in sets +/-2 grams and most are available for both press-fit or bushed for floating pins. ARP 8740 capscrew bolts are used in all Eagle SIR connecting rods.
Part TypeConnecting Rod
Product LineEagle SIR I-Beam Connecting Rods
BrandEAGLE
Package Height4.2
Package Width9.6
Package Length10.8
Weight9.63 PG
Part CategoryPerformance Parts
Connecting Rod Bolt BrandARP
Connecting Rod MaterialForged 5140 steel
Advertised Horsepower Rating (Hp)500 hp
Advertised Rpm Rating6,000 rpm
Connecting Rod Bolt Head Style12-point
Connecting Rod Bolt Material8740 chromoly steel
Wrist Pin StylePress-fit
Big End Bore Diameter2.123 in (53.924 mm)
QuantitySold as a set of 8
Connecting Rod Beam StyleI-beam
RemanufacturedNo
Connecting Rod Length Center To Center5.09 in (129.286 mm)
Connecting Rod FinishShot-peened
Approximate Connecting Rod Weight (G)565
MagnafluxedNo
Weight Matched SetYes
Fastener Yield Strength (Psi)160,000
Cap Retention StyleCap screw
Pin End Bore Diameter0.912 in (23.2 mm)
Part FitmentSemi Universal
Clearanced For StrokerNo
Vendor Part NumberSIR5090FP
Package Qty1
Package TypeEA
