Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Ford Small Block 302-351W

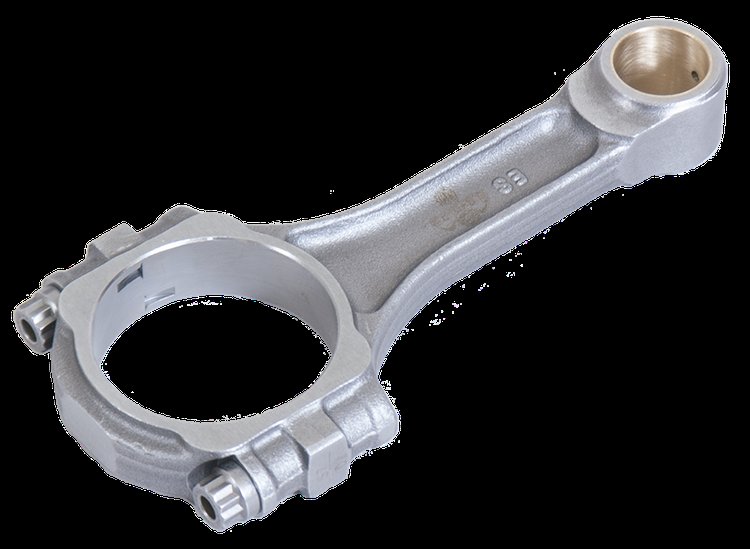

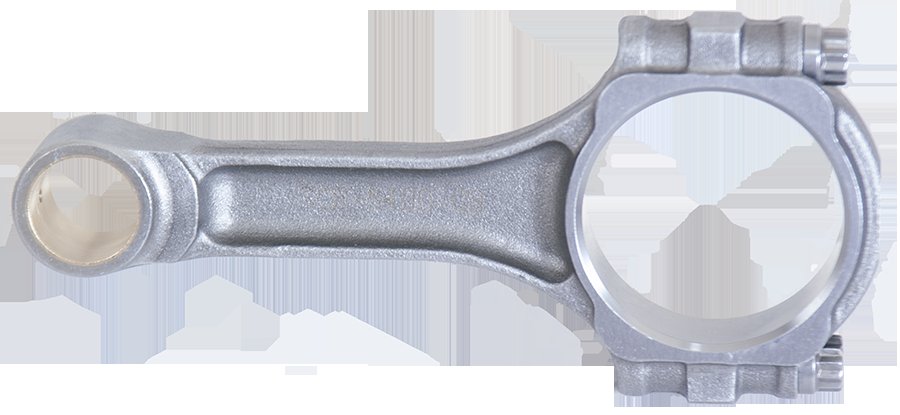

302ci/5.0L 5.400'' Connecting RodBushed pin Ford 298, 302, 5.0L V8 1/pkg
Features:
- Designed for naturally-aspirated, pump-gas street-driven engines
- Forged 5140 steel construction
- ARP 8740 capscrew bolts
Part TypeConnecting Rod
BrandEAGLE
Package Height0.5
Package Width7.6
Package Length8.8
Weight1.35 PG
Part CategoryPerformance Parts
Connecting Rod Bolt BrandARP
Rod Journal Diameter2.1 in (53.3 mm)
Connecting Rod MaterialForged 5140 steel
Advertised Horsepower Rating (Hp)600 hp
Advertised Rpm Rating6,500 rpm
Connecting Rod Bolt Head Style12-point
Connecting Rod Bolt Material8740 chromoly steel
Wrist Pin StyleFloating
Big End Bore Diameter2.225 in (56.515 mm)
QuantitySold individually
Connecting Rod Beam StyleI-beam
RemanufacturedNo
Connecting Rod Length Center To Center5.4 in (137.16 mm)
Connecting Rod FinishPolished and shot-peened
Approximate Connecting Rod Weight (G)565
MagnafluxedYes
Weight Matched SetYes
Fastener Yield Strength (Psi)160,000
Cap Retention StyleCap screw
Pin End Bore Diameter0.927 in (23.5 mm)
Clearanced For StrokerNo
Vendor Part NumberSIR5400CB-1
Package Qty1
Package TypeEA
