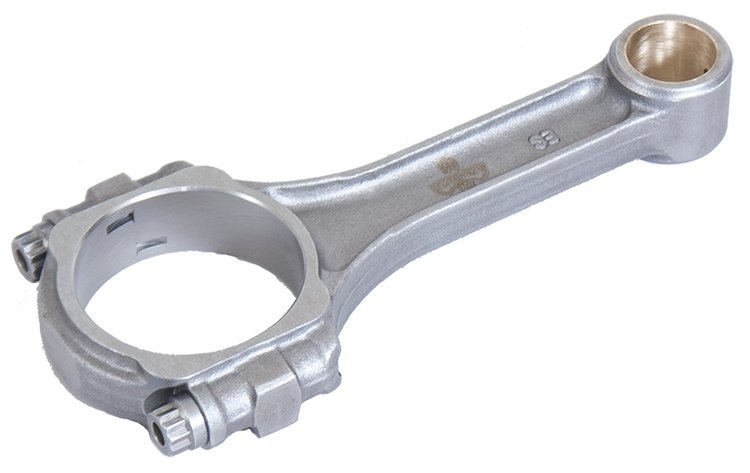

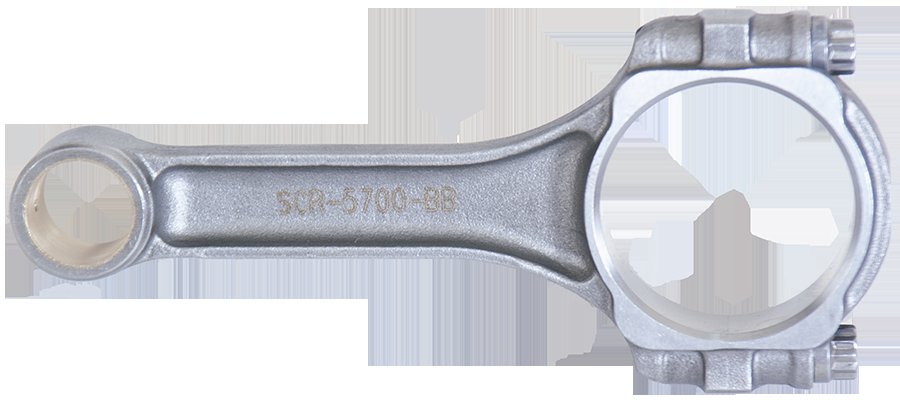

Small Block Chevy 5.700 in. Connecting Rod Large 2.100 in. Crank Journal

Vehicle Info Needed

EAGLEPART NUMBER: 356-SIR5700BB-1

Small Block Chevy 5.700 in. Connecting Rod Large 2.100 in. Crank Journal

Name: Small Block Chevy 5.700 in. Connecting Rod Large 2.100 in. Crank Journal
Brand: EAGLE
SKU: 356-SIR5700BB-1
Price: 73.99 USD
Availability: InStock

^$73⁹⁹

4 left in stock

Ships Today

Lowest Price Guarantee

Chevrolet Small Block 327-400

Small Block Chevy 5.700 in. Connecting Rod

Large 2.100 in. Crank Journal

Silicon-Bronze Pin Bushing

Forged 5140 Steel

3/8 in. Capscrew Rod Bolt

560 g.

Sold Individually

SIR5700BB-1 Features:

Upgrade over O.E. rods
Shot-peened surface
Pin Size: .927 in.
Housing Bore: 2.225 in.
Big End Width: .940 in.

Notes:

Must torque to 40 ft. lbs. with ARP moly lube
Recommend to be used with naturally-aspirated on pump gas applications

Part TypeConnecting Rod

BrandEAGLE

Package Height1.6

Package Width4.8

Package Length9.3

Weight1.24 PG

Part CategoryPerformance Parts

Rod Journal Diameter2.1 in (53.3 mm)

Connecting Rod MaterialForged 5140 steel

Connecting Rod Bolt Material8740 chromoly steel

Wrist Pin StyleFull Floating

QuantitySold individually

Connecting Rod Beam StyleI-beam

Main Bearings IncludedNo

Big End Width0.94 in (23.876 mm)

Connecting Rod FinishShot-peened

Approximate Connecting Rod Weight (G)560

Cap Retention StyleCap screw

Part FitmentSemi Universal

Vendor Part NumberSIR5700BB-1

Package Qty1

Package TypeEA
