Vehicle Info NeededEAGLEPART NUMBER: 356-SIR5700SBLW

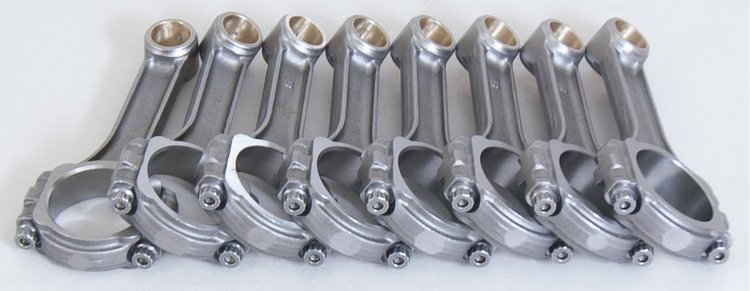

327-400ci 5.700" Connecting Rods Small 2.000" Crank Journal (2.000" )
$38499
2 left in stock
Ships Today
Lowest Price GuaranteeChevrolet Small Block 327-400
327-400ci 5.700'' Connecting RodsSmall 2.000'' Crank Journal (2.000'') Bushed Piston Pin 3/8'' Capscrew Rod bolt 590-grams Set of 8
Features:
- Designed for naturally-aspirated, pump-gas street-driven engines
- Forged 5140 steel construction
- ARP 8740 capscrew bolts
Part TypeConnecting Rod
BrandEAGLE
Package Height4.3
Package Width9.6
Package Length11.1
Weight12.22 PG
Part CategoryPerformance Parts
Connecting Rod Bolt BrandARP
Rod Journal Diameter2 in (50.8 mm)
Advertised Horsepower Rating (Hp)500 hp
Connecting Rod Bolt Head Style12-point
Connecting Rod Bolt Material8740 chromoly steel
Wrist Pin StyleFloating
Connecting Rod Beam StyleI-beam
RemanufacturedNo
Big End Width0.94 in (23.876 mm)
Approximate Connecting Rod Weight (G)590
Weight Matched SetYes
Fastener Yield Strength (Psi)160,000
Clearanced For StrokerNo
Connecting Rod MaterialForged 5140 steel
Advertised Rpm Rating6,000 rpm
Big End Bore Diameter2.125 in (53.975 mm)
QuantitySold as a set of 8
Pin End Width1.06 in (26.9 mm)
Connecting Rod Length Center To Center5.7 in (144.78 mm)
Connecting Rod FinishShot-peened
MagnafluxedYes
Cap Retention StyleCap screw
Pin End Bore Diameter0.927 in (23.5 mm)
Part FitmentSemi Universal
Vendor Part NumberSIR5700SBLW
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
