Vehicle Info NeededEAGLEPART NUMBER: 356-SIR6000SBLW

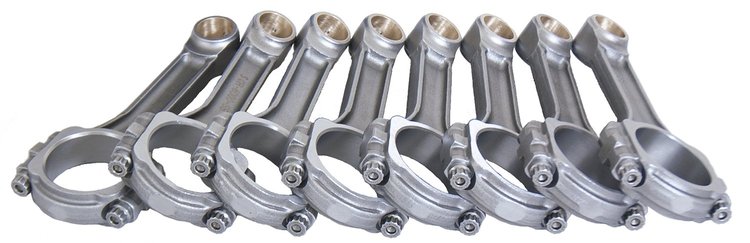

SIR6000SBLW 5140 Steel I-Beam Chevy Sb 6 in.
$39099
3 left in stock
Ships Today
Lowest Price GuaranteeChevrolet Small Block 327-400
6 in. 5140 Steel I-Beam3/8 in. ARP 8740 Bolts
Eagle SIR6000SBLW Features:
- Bolts: 3/8 in. ARP 8740
- Matieral: Forged 5140 Steel
- Center to Center Length: 6.000 in.
- Pin Size: 0.927
- Pin End Width: 1.063
- Rod Journal: 2
- Housing Bore: 2.125
- Big End Width: 0.94
- Silicon-Bronze pin bushing for full-floating piston pins.
Part TypeConnecting Rod
BrandEAGLE
Package Height4.2
Package Width9.7
Package Length10.9
Weight11.85 PG
Part CategoryPerformance Parts
Connecting Rod Bolt BrandARP
Rod Journal Diameter2 in (50.8 mm)
Connecting Rod MaterialForged 5140 steel
Advertised Horsepower Rating (Hp)500 hp
Advertised Rpm Rating6,000 rpm
Connecting Rod Bolt Head Style12-point
Connecting Rod Bolt Material8740 chromoly steel
Wrist Pin StyleFloating
Big End Bore Diameter2.125 in (53.975 mm)
QuantitySold as a set of 8
Connecting Rod Beam StyleI-beam
RemanufacturedNo
Connecting Rod Length Center To Center6 in (152.4 mm)
Connecting Rod FinishPolished and shot-peened
Approximate Connecting Rod Weight (G)590
MagnafluxedYes
Weight Matched SetYes
Fastener Yield Strength (Psi)160,000
Cap Retention StyleCap screw
Pin End Bore Diameter0.927 in (23.5 mm)
Part FitmentSemi Universal
Clearanced For StrokerNo
Vendor Part NumberSIR6000SBLW
Package Qty1
Package TypeEA
