Vehicle Info NeededEAGLEPART NUMBER: 356-SIR6135B-1

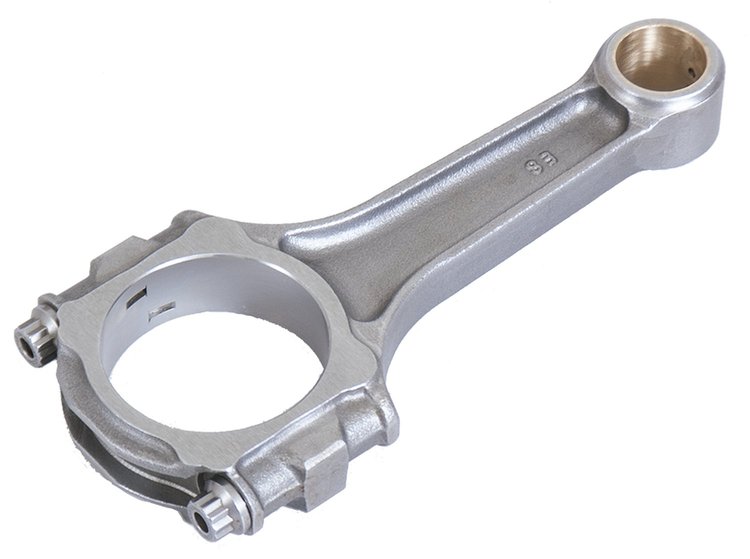

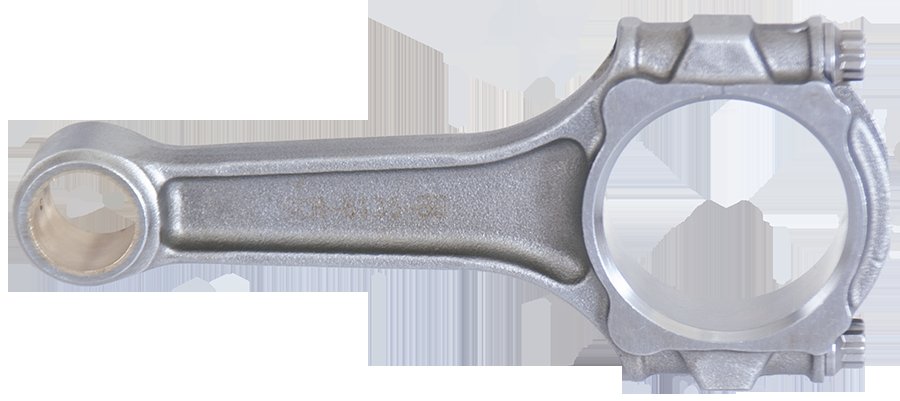

396-502ci 6.135" Connectin Rod Bushed Piston Pin
$8599
Ships on 09/09/2026
Lowest Price GuaranteeChevrolet Big Block 396-502
396-502ci 6.135'' Connectin RodBushed Piston Pin 7/16'' Capscrew Rod bolt 830-grams Each
Features:
- Designed for naturally-aspirated, pump-gas street-driven engines
- Forged 5140 steel construction
- Available press-fit or bushed floating pins
- ARP 8740 capscrew bolts
Absolutely the Best Value in Steel Rods
Eagle Specialty Products SIR Connecting Rods are an economically priced alternative to the time and expense involved in reworking OE connecting rods. SIR connecting rods are forged from 5140 steel with up to 50 percent increase in strength over stock rods. All rods are weight matched in sets +/-2 grams and most are available for both press-fit or bushed for floating pins. ARP 8740 capscrew bolts are used in all Eagle SIR connecting rods.
Part TypeConnecting Rod
Product LineEagle SIR I-Beam Connecting Rods
BrandEAGLE
Package Height1.1
Package Width2.5
Package Length8.2
Weight1.5 PG
Part CategoryPerformance Parts
Connecting Rod Bolt BrandARP
Rod Journal Diameter2.2 in (55.9 mm)
Connecting Rod MaterialForged 5140 steel
Advertised Horsepower Rating (Hp)700 hp
Advertised Rpm Rating7,500 rpm
Connecting Rod Bolt Head Style12-point
Connecting Rod Bolt Material8740 chromoly steel
Wrist Pin StyleFloating
Big End Bore Diameter2.325 in (59.055 mm)
QuantitySold individually
Connecting Rod Beam StyleI-beam
RemanufacturedNo
Connecting Rod Length Center To Center6.135 in (155.829 mm)
Connecting Rod FinishPolished and shot-peened
Approximate Connecting Rod Weight (G)830
MagnafluxedYes
Weight Matched SetYes
Fastener Yield Strength (Psi)160,000
Cap Retention StyleCap screw
Pin End Bore Diameter0.99 in (25.1 mm)
Clearanced For StrokerNo
Vendor Part NumberSIR6135B-1
Package Qty1
Package TypeEA
