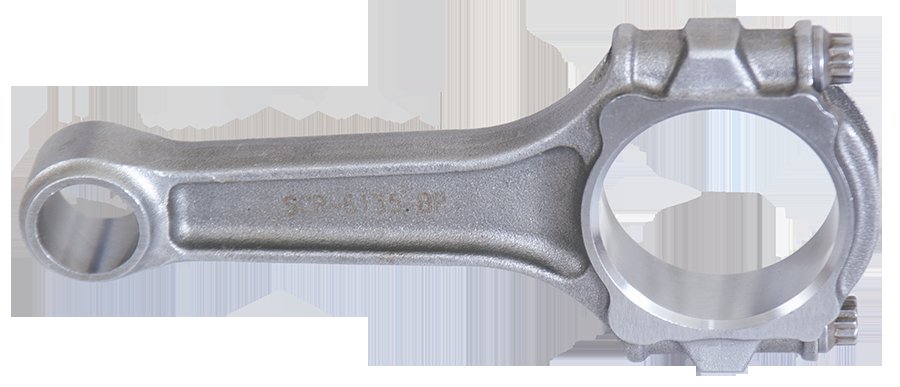

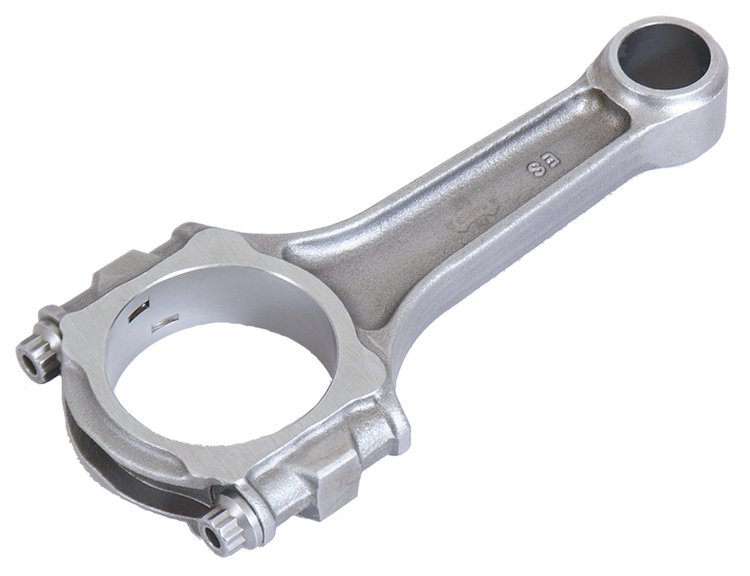

396-502ci 6.135" Connecting Rods Pressed Piston Pin
InfoVehicle Info Needed
EAGLEPART NUMBER: 356-SIR6135P-1

396-502ci 6.135" Connecting Rods Pressed Piston Pin

$8899
ShippingShips on 09/09/2026
Lowest PriceLowest Price Guarantee

Chevrolet Big Block 396-502
396-502ci 6.135'' Connecting Rods
  • Pressed Piston Pin
  • 7/16'' Capscrew Rod bolt
  • 830-grams
  • Each

    Features:

    • Designed for naturally-aspirated, pump-gas street-driven engines
    • Forged 5140 steel construction
    • ARP 8740 capscrew bolts
    • Part TypeConnecting Rod
    BrandEAGLE
    Package Height0.1
    Package Width4.0
    Package Length8.75
    Weight1.9 PG
    Part CategoryPerformance Parts
    Connecting Rod Bolt BrandARP
    Rod Journal Diameter2.2 in (55.9 mm)
    Connecting Rod MaterialForged 5140 steel
    Advertised Horsepower Rating (Hp)700 hp
    Advertised Rpm Rating7,500 rpm
    Connecting Rod Bolt Head Style12-point
    Connecting Rod Bolt Material8740 chromoly steel
    Wrist Pin StylePress-fit
    Big End Bore Diameter2.325 in (59.055 mm)
    QuantitySold individually
    Connecting Rod Beam StyleI-beam
    RemanufacturedNo
    Connecting Rod Length Center To Center6.135 in (155.829 mm)
    Connecting Rod FinishPolished and shot-peened
    Approximate Connecting Rod Weight (G)830
    MagnafluxedYes
    Weight Matched SetYes
    Fastener Yield Strength (Psi)160,000
    Cap Retention StyleCap screw
    Pin End Bore Diameter0.99 in (25.1 mm)
    Part FitmentSemi Universal
    Clearanced For StrokerNo
    Vendor Part NumberSIR6135P-1
    Package Qty1
    Package TypeEA
